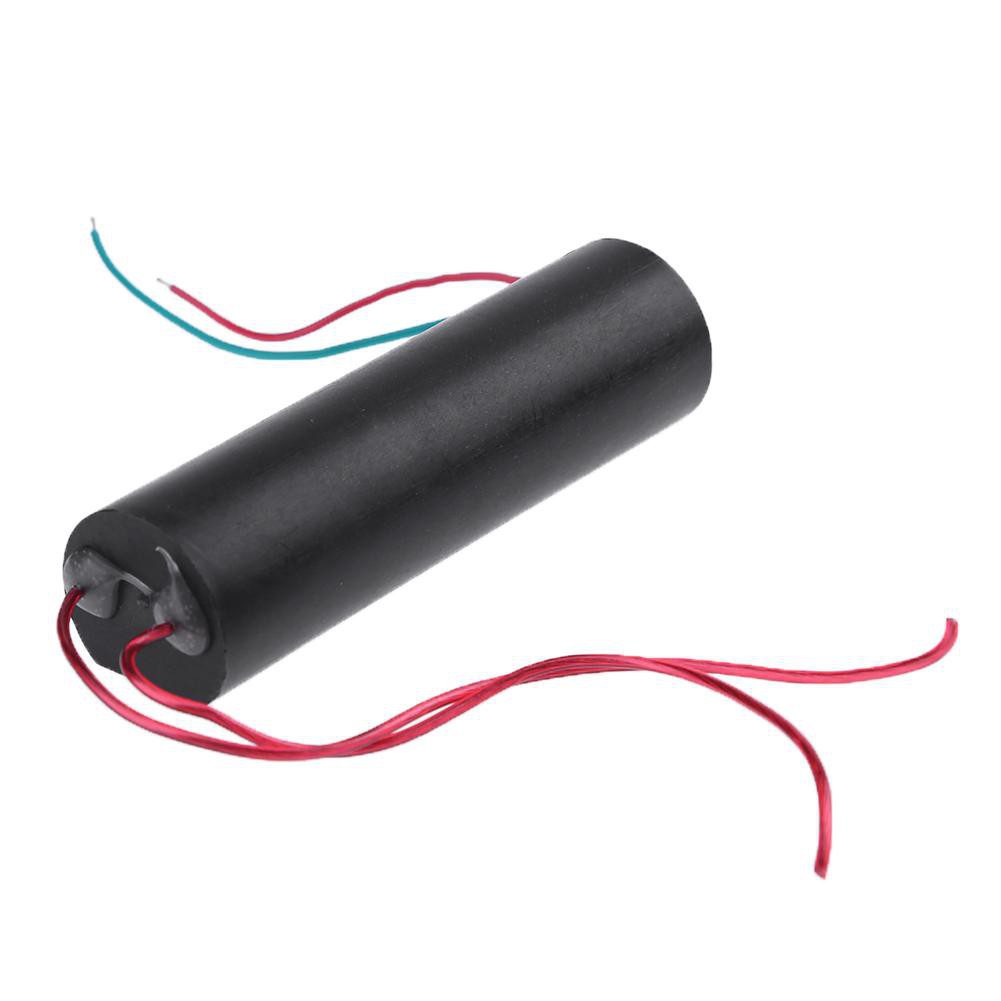

DC 3V-6V DC Boost Step Up Power Module High Voltage Generator Stun Gun Module

Description:

input voltage: DC 3 V to 6 V Input current: 2 A- 5 A High pressure type: the type of pulse current Output voltage: 400000 v(Please pay attention to safety) High pressure discharge distance between: 10 mm – 20 mm The output high voltage wire length: 100 mm Input power cord length: 100 mm (the red line is positive) Wiring: Red and green power connection red line:”+” green line “-” output : the other side ,same color cable lease notice: the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. ) Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module Package includes: 1 * DC 3v-6v to 400kV 400000V Boost Step-up Power Module High-voltage Generator
