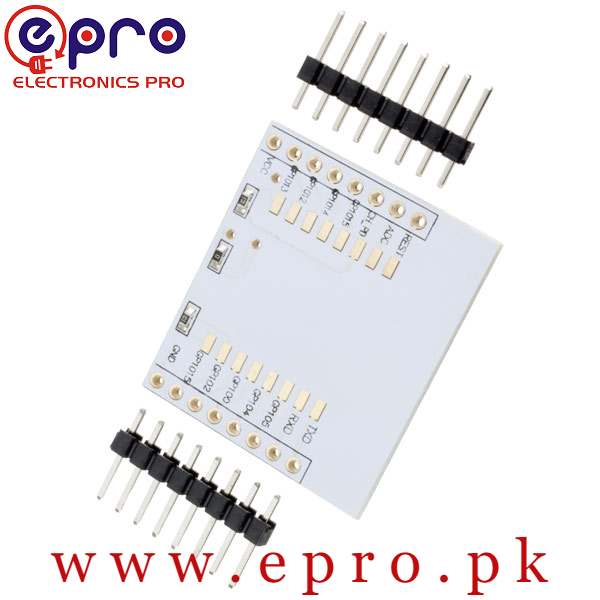

ESP8266-12E ESP-12E PCB Adapter Plate

This ESP8266 Adapter Plate is an adapter PCB plate for ESP-07, ESP-08, ESP-12E ESP8266 SMD ESP8266 Module. These SMD ESP8266 modules have an unfriendly pin pitch. But by use of this ESP8266 Adapter Board PCB, you can solder ESP-07, ESP-12E modules, and can use your ESP8266SMD modules on breadboards or on perforated boards. Get all types of sensors, modules, drone frames, motors, and much more at Pakistan’s best online store epro.pk.

Specifications and Features of ESP8266-12E PCB Plate:

• ESP8266 Adapter Board size is 31 x 28 x 3 mm.
• 2.54mm pitch breadboard friendly.
• It is easy to solder.
• There is no need to connect an external resistor between VCC and Chip enable.
• Its weight is 4 grams.
• The thickness of the PCB is 1.6mm.
• The PCB color is white.
• On the top layer of PCB is in black color.
• 10K pull-up resistor is populated on the PCB board.
• It is compatible with the latest ESP-12F ES8266 Wifi Module.
• On the bottom layer, there is a land-pattern for a 3.3V regulator.
• To use a 3.3V regulator you will need to desolder 0-ohm jumper resistor R1.
•  The VCC pin then becomes 4.5V to 9V power input.

Package Included:

One Piece of ESP8266 Adapter Plate.
