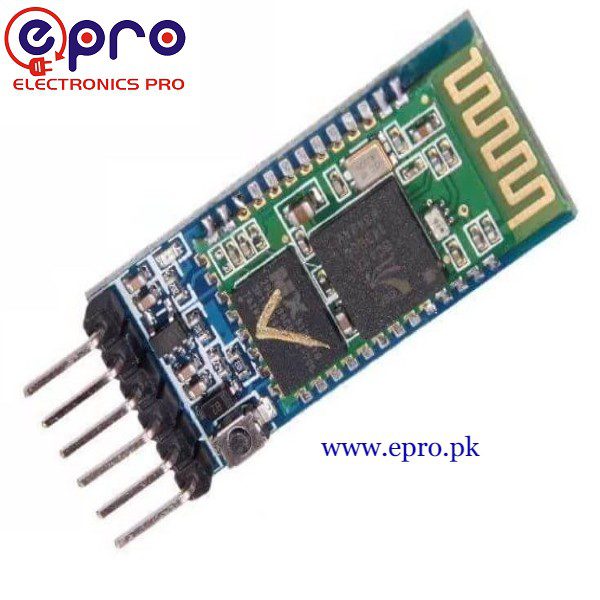

Bluetooth Module HC05 in Pakistan

(1 customer review)

Specifications:



This Bluetooth module is for Arduino and other microcontrollers.

Its operating voltages are 4 to 6 volts.

Its operating current is 30mA.

It ranges us 100m.

It works with serial communication and TTL compatible.

It follows the IEEE 802.15.1 standard protocol.

it can operate in master or slave mode or in both modes.

We can interface it with a laptop or mobile phone.



430.00

Description

Product Description of Bluetooth Module HC05





Pin number one is for toggle between data mode and AT command mode. By default, this pin is in data mode.

VCC pin is for power the module. This will connect to the 5V supply voltage.

GND pin is used to Ground pin of the module. And connect to the system ground.

TX pin transmits the serial data. Data received via Bluetooth will be given out through this transmit pin as serial data.

RX pin receives serial data. Serial data will be given to this pin will broadcast through Bluetooth.

State pin is 6th pin. This pin connected to the onboard LED. This pin is used when we want to check if Bluetooth is working properly or not.

There is an LED on the HC05 module. When it blinks one time in 2 sec. it means the module is in command mode.

If it blinks continuously than it means it is waiting for a connection in Data mode.

If this LED blinks twice in 1 sec it means connection successfully in data mode.

There is also a button which is used to enable the pin to toggle between data and command mode.



Specifications of Bluetooth Module HC05:



This Bluetooth module is for Arduino and other microcontrollers.

Its operating voltages are 4 to 6 volts.

Its operating current is 30mA.

It ranges us 100m.

It works with serial communication and TTL compatible.

It follows the IEEE 802.15.1 standard protocol.

it can operate in master or slave mode or in both modes.

We can interface it with a laptop or mobile phone.



Applications:



It supports wireless communication between two microcontrollers.

It communicates with a laptop, desktop, and mobile phones.

It is used in the data logging application.

It is also used in consumer applications

It is used in wireless robots

It is used in home automation.
