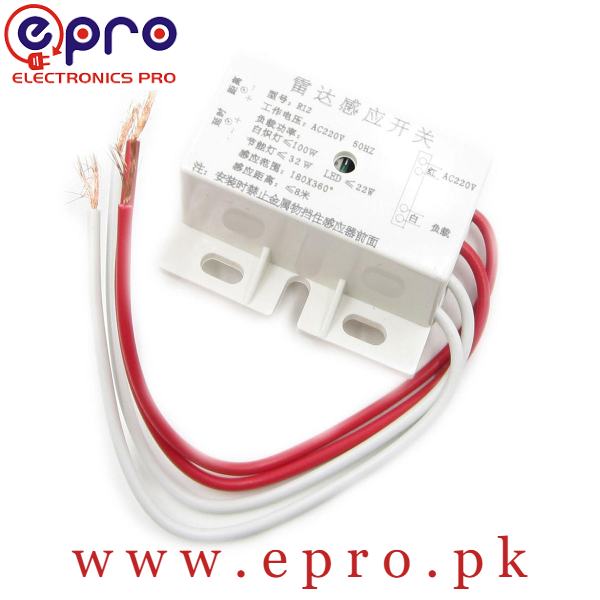

Infrared Human Sensor Switch PIR Microwave Radar Body Motion Sensor Module Adjustable 220V 50Hz in Pakistan

  • Voltage: AC 220V /50Hz
  • Load power: standby < 0.5W
  • Induction distance: 4-8M (Adjustable)
  • Time extension: 10s-70s (Adjustable)
  • Light up: Light control, can not be adjusted
  • Sensing Angle: 180×360°
  • Environment temperature: -10° ~ 60°
  • Color: White
  • Size: 4.8 x 3.5 x 2.2cm/1.9″ x 1.4″ x 0.87″(L*W*T)

800.00

Description

Infrared Human Sensor Switch PIR Microwave Radar Body Motion Sensor Module Adjustable 220V 50Hz



According to the Doppler effect, the activities of the surrounding environment sensor body. When a person or object enters the sensing range of activities, the switch will automatically be energized until a stationary state or leave the range states, auto power off.  With light control function, by default only work at night or under low light, normal (daylight or ambient light is relatively strong test case does not work properly, please note.)  Partially penetrate non-metallic materials induction. Such as glass, wood, plastic. Less than 15cm may also penetrate walls induction.
Suitable hidden installation does not affect the appearance.

Specifications of Sensor Module Adjustable For Time Distance Range:

  • Voltage: AC 220V /50Hz
  • Load power: standby < 0.5W
  • Induction distance: 4-8M (Adjustable)
  • Time extension: 10s-70s (Adjustable)
  • Light up: Light control, can not be adjusted
  • Sensing Angle: 180×360°
  • Environment temperature: -10° ~ 60°
  • Color: White
  • Size: 4.8 x 3.5 x 2.2cm/1.9″ x 1.4″ x 0.87″(L*W*T)
  • Wire Length: 14cm/5.7″
  • Fixing Hole Size: 8 x 3mm/0.31″ x 0.12″(L*W)
  • Fixing Hole Center Distance: 28mm/1.1″
  • Scope: corridors, aisles, stairs
  • Load type: incandescent, energy-saving lamps, lamp, LED
  • Load type: incandescent lamp ≤ 100W, energy-saving lamps, circular tube ≤ 32W, LED ≤ 15W
Package Included:
One Piece of 220V AC 50Hz Auto Infrared Human Sensor Switch PIR Microwave Radar Body Motion
