MPU9250 GY-9250 9 Axis Gyroscope Accelerometer in Pakistan

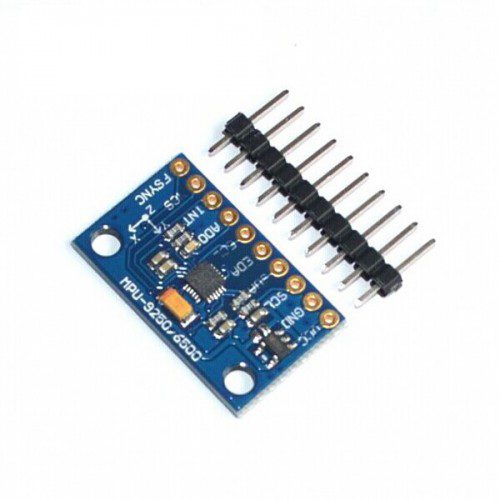

9-Axis Gyro + Accelerator + Magnetometer Sensor Module MPU-9250



Module Specification:

Supply voltage: 5V (on-board 3.3V regulator)
Interface: I2C
Dimensions: 26mm x 15mm

Module Pinout:

VCC……3.6 to 6V supply (on-board 3.3V regulator)
SCL……I2C serial clock
SDA……I2C serial data
EDA……Auxiliary I2C master serial data
ECL……Auxiliary I2C Master serial clock
AD0……I2C Slave Address LSB (AD0)
INT……Interrupt digital output (totem pole or open-drain)
NCS…..Chip select (SPI mode only)
FSYNC..Frame synchronization digital input. Connect to GND if unused.

Gyroscope Features:

The triple-axis MEMS gyroscope in the MPU-9250 includes a wide range of features:
• Digital-output X-, Y-, and Z-Axis angular rate sensors (gyroscopes) with a user-programmable fullscale range of ±250, ±500, ±1000, and ±2000°/sec and integrated 16-bit ADCs
• Digitally-programmable low-pass filter
• Gyroscope operating current: 3.2mA
• Sleep mode current: 8µA
• Factory calibrated sensitivity scale factor
• Self-test

Accelerometer Features:

The triple-axis MEMS accelerometer in MPU-9250 includes a wide range of features:
• Digital-output triple-axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g and integrated 16-bit ADCs
• Accelerometer normal operating current: 450µA
• Low power accelerometer mode current: 8.4µA at 0.98Hz, 19.8µA at 31.25Hz
• Sleep mode current: 8µA
• User-programmable interrupts
• Wake-on-motion interrupt for low power operation of applications processor
• Self-test 2.3 Magnetometer Features The triple-axis MEMS magnetometer in MPU-9250 includes a wide range of


• 3-axis silicon monolithic Hall-effect magnetic sensor with magnetic concentrator
• Wide dynamic measurement range and high resolution with lower current consumption.
• Output data resolution of 14 bit (0.6µT/LSB) or 16 bit (15µT/LSB)
• Full scale measurement range is ±4800µT
• Magnetometer normal operating current: 280µA at 8Hz repetition rate
• Self-test function with internal magnetic source to confirm magnetic sensor operation on end products

Additional Features:

The MPU-9250 includes the following additional features:
• Auxiliary master I2C bus for reading data from external sensors (e.g. pressure sensor)
• 3.5mA operating current when all 9 motion sensing axes and the DMP are enabled
• VDD supply voltage range of 2.4 – 3.6V
• VDDIO reference voltage for auxiliary I2C devices
• Smallest and thinnest QFN package for portable devices: 3x3x1mm
• Minimal cross-axis sensitivity between the accelerometer, gyroscope and magnetometer axes
• 512 byte FIFO buffer enables the applications processor to read the data in bursts
• Digital-output temperature sensor
• User-programmable digital filters for gyroscope, accelerometer, and temp sensor
• 10,000 g shock tolerant
• 400kHz Fast Mode I2C for communicating with all registers
• 1MHz SPI serial interface for communicating with all registers
