74LS32 Quad 2-Input OR Gate IC

The 74LS32 is a Quad 2-Input OR Gate IC, designed to perform the OR logic function with high efficiency and reliability. It features four independent gates, each capable of processing two input signals and outputting the logical OR of those inputs. This versatile device is ideal for use in a wide range of applications where logic operations are required, and it offers standard push-pull outputs for driving downstream circuits.

Key Features:

• Four Independent 2-Input OR Gates: Provides four separate OR gates, each capable of handling two inputs, making it ideal for multi-channel logic operations.
• Standard Push-Pull Outputs: Allows direct interfacing with CMOS, NMOS, and TTL logic circuits.
• Wide Voltage Range: Operates efficiently within a voltage range of 2.0V to 6.0V, making it suitable for various power supply configurations.
• Clamp Diodes at Inputs: Features input clamp diodes for safe interfacing with voltages higher than VCC when using current-limiting resistors.
• Low Power Consumption: Designed with CMOS technology to minimize power consumption, ideal for energy-efficient applications.
• Schmitt Trigger Action: Ensures clean, noise-immune logic transitions at all inputs for enhanced reliability in noisy environments.
• Operating Temperature Range: Can operate in temperatures ranging from 0 to 70°C.
• 14-Pin Package: The IC is available in a 14-pin Dual In-line Package (DIP) for easy integration into electronic circuits.

Applications:

The 74LS32 Quad OR Gate IC is widely used in:

• Digital Systems: Ideal for performing basic logic functions in digital circuits.
• Interface and Signal Conditioning: Can be used to combine or condition signals from multiple sources.
• Computing and Control Circuits: Frequently used in control logic and peripheral devices.
• Logic Design and Simplification: Essential for building complex logic gates in a variety of electronic systems.

Package Includes:

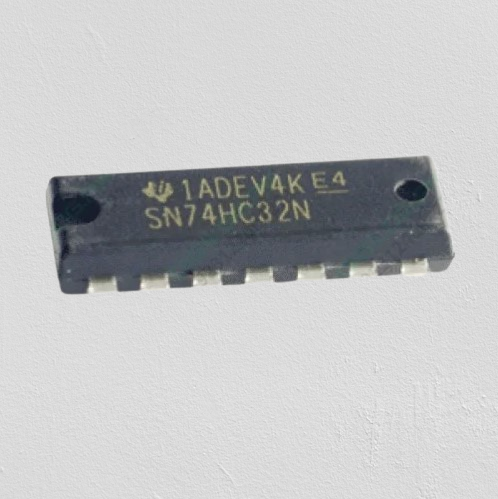

• 1 x 74LS32 Quad 2-Input OR Gate DIP IC
  • Models Available: 74LS32, 74-LS32, 74HC32, 7432

The 74LS32 Quad 2-Input OR Gate IC provides a reliable, cost-effective solution for logic operations in both TTL and CMOS compatible circuits. It is an essential component for designers seeking to simplify their digital logic designs while ensuring low power consumption and high performance.
