80W High-Quality IMAX B6-AC B6AC Lipo Battery NiMH 3S RC Battery Balance Charger Adapter

iMAX B6AC Charger or Discharger 1 to 6 cells charger is used to charge batteries at home on 110/240V. this  IMAX B6 battery charger is a rock-solid charger and it is able to charge, balance and discharge LiPo batteries. This Imax B6 is a rapid charger and it contains a high-performance microprocessor. It has optimized operating software. It has an adapter for different types of lithium batteries. This Imax B6 contains new uploaded features and this new iMAX charger also included internal resistance and capacity checker and it is along with the brushless motor driver. Get all range of sensors, modules, chargers, Motors at epro.pk.

Specifications of IMAX B6 80W Lipo RC Battery Balance Charger NIMAH Li-ION NICD:

• Its Pb battery voltages are 2 to 20 volts.
• Its polymer/ Li-ion cell count is 1~6 series.
• Its NiCd battery cell count/ NiMH battery cell count is 1~15 cells.
• Its size is almost 133 x 87 x 33mm.
• Its net weight is almost 297g.
• The total package weight is almost 402g.
• CIrcuit’s maximum power is 50W/ 80W.
• its maximum discharge power is 5W.
• its charge current range for 80W is 0.1 – 6A.
• its discharge current range for 80W is 0.1 to 2 amp.
• its lipo balancing current is 300 mAh/cell.

Features of Lipo Battery Charger with AC Adapter:

• Its input value is AC 100-240V or it is based on 12V DC.
• Its cable comes with a fitted fuse.
• It is microprocessor controlled.
• This charger is capable of Li-ion, Lipo, and LiFe capable.
• It also has the feature of input voltage monitoring.
• It has a battery break-in and cycling feature.
• It also has a memory feature. It can store up to 5 packs in memory.
• It also contains an internal resistance checker to see pack health.
• Its operation voltage range is DC 10 to 20 volts.
• It also has the feature of Delta-Peak sensitivity.
• It has an EU plug to IEC C13 and is used in devices such as AC adapters, Digital Cameras, Monitors, Printers, Direct TV, and more.

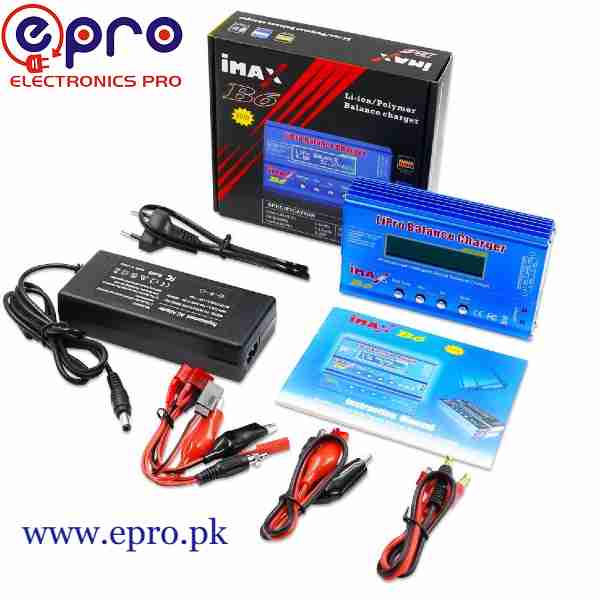

Package Includes:

• One Piece of Imax B6 LiPo balance charger.
• One Piece of the multi-functional extension cable.
• One Piece of Universal crocodile clip.
• One Piece of JST connector.
• One Piece of Manual.
• One Piece of AC adapter.
