TFT LCD Shield V2.2 Expansion Board for Arduino in Pakistan

  • This board has been updated to white in Rev2.0.
  • Support for 16-bit mode and IRQ has been canceled.
  • CS is connected to GND. So you need to fix your code.
  • We have updated the demo code.
    The TFT01 LCD module works at a 3.3V voltage level and is not compatible with Arduino pins, so
  • Create a shield for the Arduino. Now the user plugs the TFT01 directly into the shield and
  • It can be used on the Arduino board.

500.00

Description

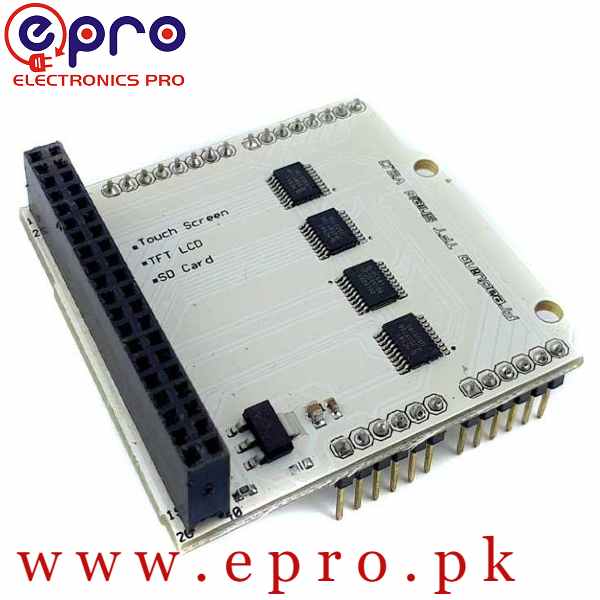

TFT LCD Shield V2.2 Expansion Board for Arduino



Arduino UNO LCD TFT Shield for 8 pin 40-bit TFT LCD is used for the purpose of transferring the communication voltage between LCD TFT (3V) and Arduino UNO if directly connected LCD Arduino Uno will not be used can be used or burnt LCD due to the difference in communication voltage, the TFT LCD Shield V2.2 can be used with Arduino Uno (or similar types of Arduino with foot type) and LCD supports 8bit data communication standard or parallel both standard 8/ 16 bit (does not support the 16 bit standard).



Features of LCD TFT01 Arduino Shield/Arduino Compatible/LCD TFT01 Arduino Shield v2.0 SHD09/EF02033:



  • Arduino  Uno LCS TFT Shield for 40 pins 8-bit TFT LCD.
  • Communication voltage between LCD TFT and Arduino Uno.
  • The communication voltage is 3V.
  • It is compatible with Arduino Uno.



How pins will attach with a shield:



  • D0……… DB8 (screen data bus)
  • D1……… DB9 (screen data bus)
  • D2……… D108 (screen data bus)
  • D3……… DB11 (screen data bus)
  • D4……… DB12 (screen data bus)
  • D5……… DB13 (screen data bus)
  • D6……… DB14 (screen data bus)
  • D7……… DB15 (screen data bus)
  • D8……… D_CS (resistive touch chip select)
  • D9……… D_OUT (resistive touch data out)
  • D10……… SD­_CS (SD card chip select)
  • D11……… SD­_DIN (SD card data in)
  • D12……… SD_OUT (SD card data out)
  • D13……… SD­_SCK (SD card data SCK)
  • A0……… D_DIN (resistive touch data in)
  • A1……… D_CLK (resistive touch CLK)
  • A2……… RESET (screen reset)
  • A3……… LCD_CD (screen chip select)
  • A4……… WR(screen write strobe)
  • A5……… RS(screen register select)



Package included:

One Piece of Arduino TFT LCD Shield
