20A 12V Lithium Battery Charger Module BMS in Pakistan

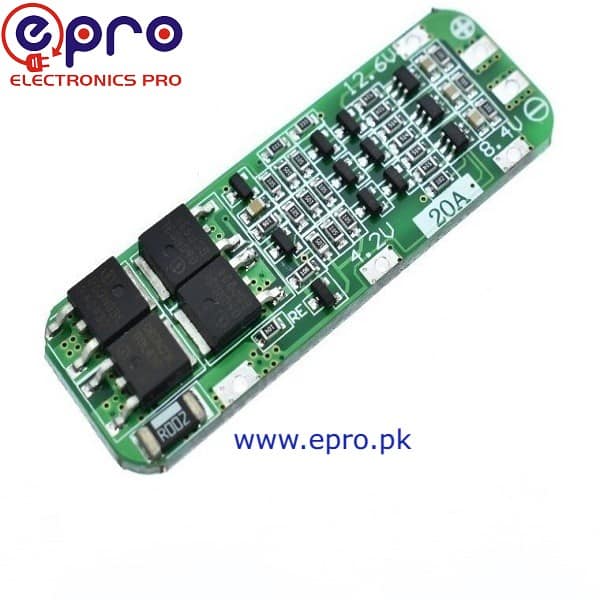

3S 20A 12V Lithium Battery Charger Protection Board BMS Module for 3pcs 18650 Li-ion Battery Cell Charging 11.1V 12.6V


Features of Lithium Battery Charger Module :


A suitable range of BMS for nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)

Product Size is almost 64mmx20mmx3.4mm

The material of the product is Metal

Charging voltages are 12.6V

Maximum output current is 20A

Maximum output power/charging power is 252W

The overload voltage range is 4.25-4.35 v? 0.05 v

Overpressure voltage range is 2.3-3.0 v? 0.05 v

It has Short circuit protection. BMS also has Overcharge protection. It provides Over-discharge protection.

It also provides Over current protection. It can be applied to various 3.7V lithium core.

Bms has Compact size and lightweight. It has Fine workmanship and durable. It ensures the security of the battery pack.

Battery charger module is Suitable for 10.8V which is the Rated voltage of polymer battery.

 11.1V is for 18650 or 3.7V lithium battery rated voltage.

 12.6V is for Lithium battery full charge voltage.

It is available at epro.pk.


Specification of the charging module:


 Brand new Size is approximate 50x16x1mm

Maximum discharge current is10A

 Overcharge detection voltages are 4.25-4.35V±0.05V

 Over-discharge detection voltages are 2.3-3.0V±0.05V

 Maximum working current is 5A-8A

Transient current is 9A-10A

Operating temperature is between -40~50

Storage temperature is -40~80

Quiescent current is less than 6uA

Internal resistance is 60mΩ

 Service life is 30,000 hours



Package Included in Lithium Battery Charger Module :


One piece of 10A 3s li-ion lithium battery 18650 charger 11.1V 12.6V PCB protection board





First, we should charge it and then we can get output after connection.

 Please do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity is closer will be better. Please, buyers, know the professional knowledge of this module before buying.

 Please don’t mix the good battery and bad battery because it gives different values on different qualities of batteries.
