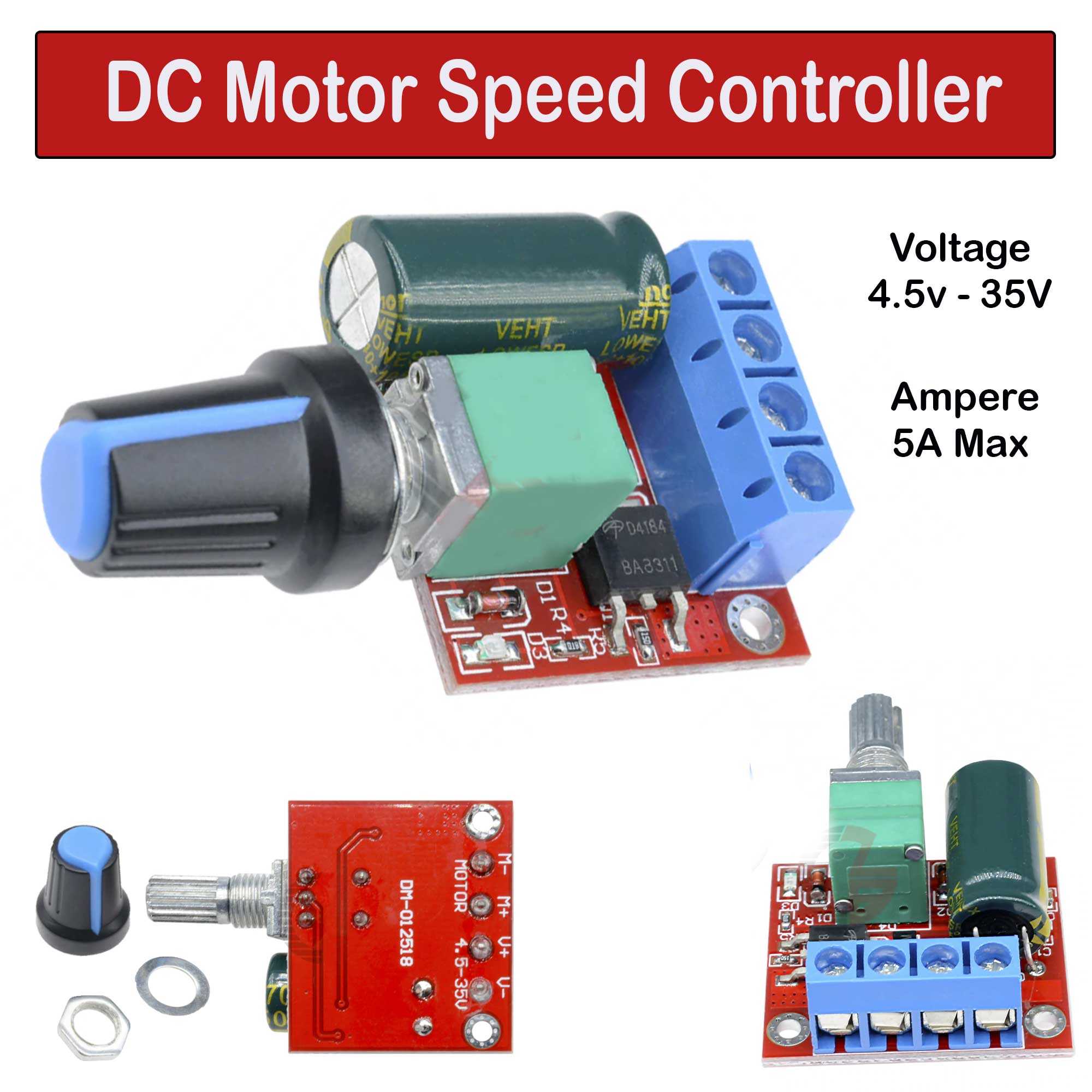

HW-687 5A Mini DC Motor PWM Speed Controller Module in Pakistan

210

Add 10,000 to cart and get free shipping!

Purchase this product now and earn 210 Points!

Compare
Description

Description

HW-687 dc motor Speed Controller is one easy module for adding speed regulation to your next DC motor-based project. It is a simple pulse-width-modulated speed controller providing smooth control with almost no jerks. There is no soldering involved, so it is perfect for quick prototyping and modeling, especially for those not having easy access to requisite raw materials

Features:

Mini wide voltage DC motor governor, using the latest low voltage drive technology, suitable for voltage wide DC5-35V (5-9V input needs to be shorted), with self-recovery fuse, also suitable for LED dimming.

Specifications of HW-687 dc motor Speed Controller :

  1.  Operating voltage: DC5V-35V
  2. Output current: 0-5A
  3. Output power: 90W (max)
  4. PWM duty cycle: 1% -100%
  5. PWM frequency: 10khz
  6. Size: 30mm x 24mm x 15mm (Without Handle)

Precautions:

  1. DC motor governor input is DC, can not directly be connected to the AC (for example home 220V AC), otherwise, it will burn!
  2. DC power supply positive and negative terminals do not reverse, otherwise, the governor may be damaged.
  3. The motor can be positive or negative when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
  4. Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.



5 HW687 Schematic

Package Include:

  • 1X 5A Mini DC Motor PWM Speed Controller Module
  • 1XNut
  • 1XDimmer Cap

41RdMjNlK7L
