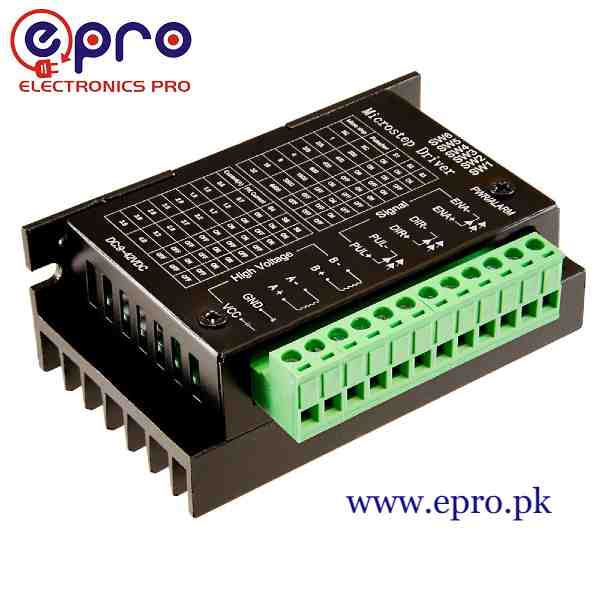

Stepper Motor Driver TB6600 in Pakistan

TB6600 Arduino Stepper Motors Driver is a professional stepper motor driver. This stepper motor driver controls a two-phase stepping motor. This motor driver is compatible with Arduino and other microcontrollers. Because this motor driver can output a 5V digital pulse signal. This TB6600 Steppers Motor Driver supports a wide range of power input. It supports 9 to 42V DC power supply. This motor driver is able to output 4A maximum peak current and this current is enough for the most of stepper motors. Get all types of Motor drivers, sensors, and modules at epro.pk.

Specifications of TB6600 Stepper Motor Driver in Pakistan:

• Its input current is 0 to 5A.
• 0.5 to 4A is its output current.
• Its control signal is 3.3 to 24 Volts.
• It contains a maximum of 160W  power.
• Its micro-steps are 1, 2/A, 2/B, 4, 8, 16, 32
• Its temperature range is -10 to 45 degrees centigrade.
• It has no condensation of Humidity.
• Its size is 96 x 71 x 37 mm.
• Its weight is 0.2 kg.

Features of TB6600 Motor Driver:

• This steppers motor driver supports 8 kinds of current control.
• It has the feature of automatic semi-flow to reduce heat.
• It has a large area heat sink.
• It has anti-high-frequency interference ability.
• It has input anti-reverse protection
• It has the feature of overheating, over-current, and short circuit protection.

Environmental Requirements:

• Its storage temperature is -20 to 65 degrees centigrade.
•  Its ambient humidity is <80 percent R, and there is no condensation and no frost.

Input and Output Pin Configuration:

Signal Input:

• + Pulse is PUL+.
• -Pulse is referred to as PUL-.
• +Direction is referred to as DIR+.
• -Direction refers to DIR-.
• EN+ refers to Off-line control Enable.
• Because this motor driver can output a 5V digital pulse signal
