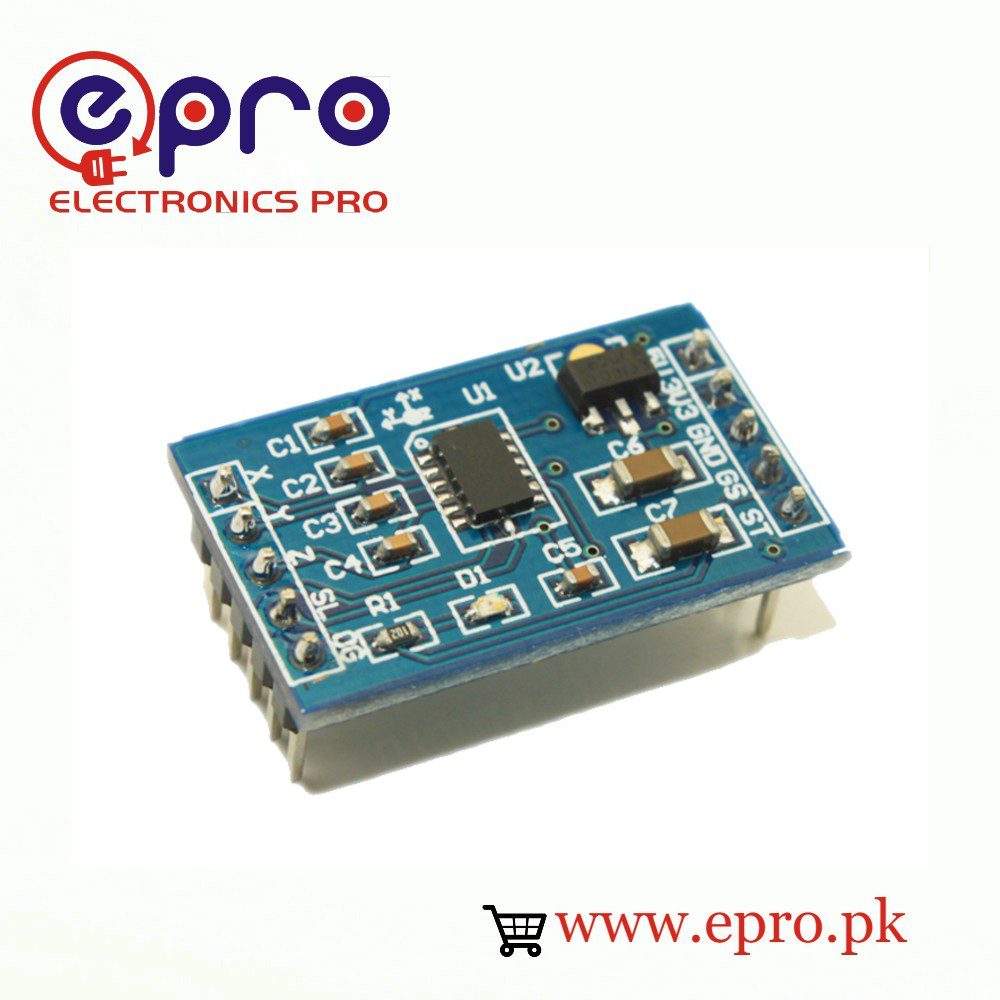

Product Description of MMA7361 3 Axis Accelerometer Sensor Module Angle Sensor Module

MMA7361 Accelerometer Sensor is a 3 axis accelerometer. It gives the output in the form of analog signals. Every axis has its own dedicated output pin. User can connect their analog inputs to Arduino. And accelerometer gives the measure from the Arduino.MMA7361 can operate on the 3.3V device. It can also operate on 5V as well as 3.3V.

• its size is 3mm x 5mm x 1.0mm LGA-14 package
• Low current consumption is approximate 400μA
• Sleep mode is 3μA
• Low voltage operation is 2.2V – 3.6V
• The high sensitivity range is  (800 mV/g @ 1.5g)
• The selectable sensitivity range is  (±1.5g, ±6g)
• Fast turn-on time is approximately (0.5ms enable response time)
• it has Self-test for free fall detect diagnosis
• it consists of 0g-detect for free-fall protection

Features of Angle Sensor Module:

It is 3 axis micro-acceleration sensors.

Its on-board voltage regulator allows for optional supply voltages up to 7V.

It has two selectable range options:  1.5g and 6g

It has breadboard compatible pins.

We can enable sleep mode easily by using the module’s SL pins.

It has built-in self-test abilities. It can self-test by its own self. Electrostatic force to each axis causes it to deflect and then it does the self-test.

It has signal conditioning with a low pass filter.

It has 0g detect for freefall detection. The 0G pin will go when 0g is detected.

Specification MMA7361 3 Axis Accelerometer Sensor Module:

It is connected to a 3V pin and the range is 2.2V to 3.6V.

It is connected to 5V and its range is 4V to 7V.

Its Current usage is -400uA, 3uA in sleep.

Its turn-on time is 0.5ms.

Its length is 28mm.

Its height is 3.3mm.

Its weight is 2.5g
