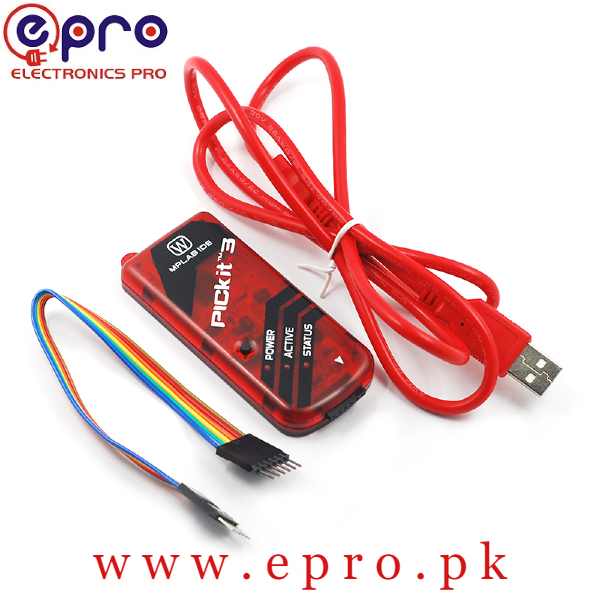

Description of Pickit 3 Programmer Kit in Pakistan

Pickit 3 programming kit allows debugging and this programmer also allows programming of PIC. this device also allows DSPIC flash microcontrollers at the most affordable price. programmer 3 allows us to use a powerful graphical user interface. this programmer provides MPLAB integrated development environment. this programming board is connected to the design’s engineer’s PC. this programmer kit also provides a full-speed USB interface. this Pickit 3 can be connected to the targe through Microchip debug. here microchip debug is RJ-11.  this programmer kit also connected to the connector which is compatible with MPLAB ICD 2, MPLAB ICD 3, and MPLAB Real ICE. Get all types of programmers, sensors, and modules at Pakistan’s Best Online Store epro.pk.

Specifications of PICkit Programming Kit

• it contains install 28 pins and 40 pins of the microcontroller, this programmer is left- aligned 28/40 P.
• it contains flag short-circuit cap on the position A.
• 8, 14, 18, 20 pin microcontroller aligned on left.
• 8P/ 14P/18P/20P is the flag line.
• it contains position B is for shorting cap.
• Crystal’s head name is ICD2, KIT2, KIT3.
• it contains a 6 pin block programming connection for programming.

It Supports the Following Programming Microcontroller

• First one is Series devices are PIC16/18XX 40PIN (except 16F59)
• Secondly, Series devices are PIC16/18XX 28PIN (except 16F57)
• The third one is PIC16/18XX 18PIN
• The family of devices is PIC 8PIN/14PIN/20PIN (except 10FXX)

Related Links:

• Pickit 3 Manual Link
• Pickit 3 Datasheet

Package Included:

One Piece of PICkit 3 Programmer Development Board
