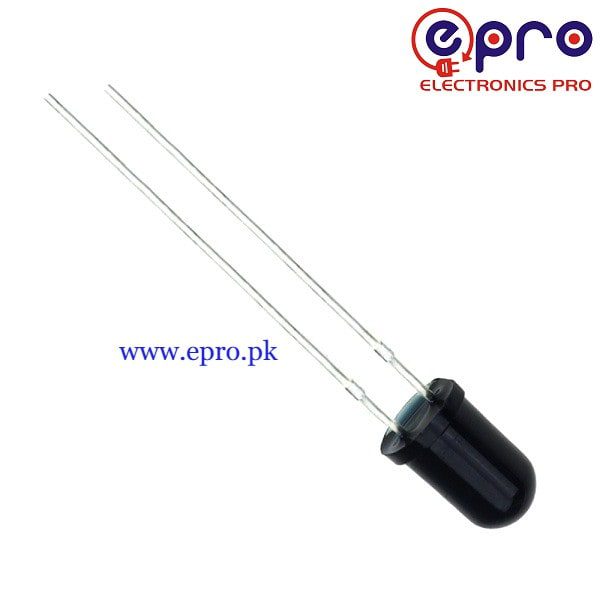

5mm IR LED Infrared Receiver in Pakistan

SKU: N/A

10.00

Description

Description About 5mm IR LED Infrared Receiver:



IR LED Infrared Receiver consists of a transmitter and receiver pair. it used IR proximity and micro mouse sensor. it consists of 5mm 940 nanometer wavelength. it is a high power IR LED. it has a photodiode which is having a peak sensitivity at 940-nanometer wavelength. IR LED consists of a transmitter and receiver pair. LED used IR proximity and micro mouse sensor. it consists of 5mm 940 nanometer wavelength. Infrared Receiver is a high power IR LED. it has a photodiode which is having a peak sensitivity at 940-nanometer wavelength.

Features of Infrared Reciever:



it consists of a transmitter and receiver.

it has IR proximity.

it has a micro mouse.

it has high power IR led

it has photodiode.

it has peak sensitivity at 940-nanometer wavelength.



Transmitter (Tx) led infrared receiver :

  • Power consists of 0.1W.
  • Absolute Maximum Forward Current is 50mA.
  • Launch Angle (Approx) is 45 Deg.
  • Wavelength is  940nm.
  • The typical forward voltage drop is approximately 1.1V.
  • The diameter is  5mm.



Receiver (Rx) of IR LED:

  • its Power is 0.15W.
  • The maximum current is 30mA.
  • Receiving Angle (Approx) is 45 Deg.
  • Wavelength is 940nm.
  • The typical forward voltage drop is 1.2V.
  • The diameter is  5mm.
