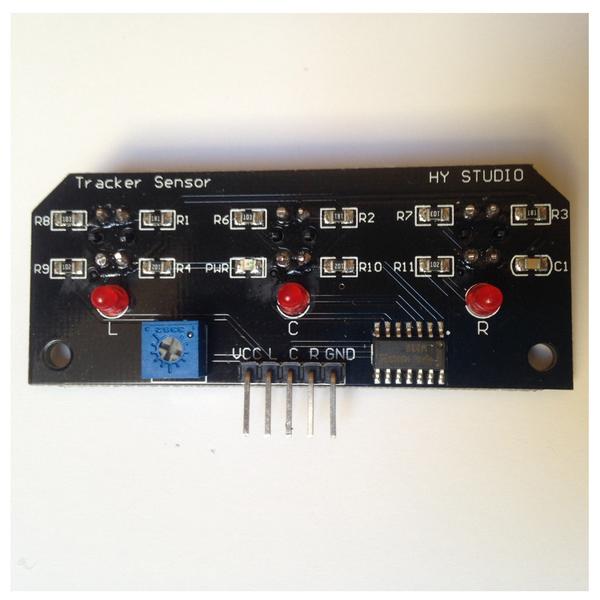

Line Following Tracking 3 Channel TCRT5000 in Pakistan

SKU: N/A
  • Line Tracker sensor consists of 3 IR transmitter and IR receiver pairs
  • Typically used for robotics in line following task
  • Used for either dark or bright line
  • Have 3 digital outputs to user indicating the existence of the line
  • Every sensor is provided with its own LEDs as indication of line detection



290.00

Out of stock

Description

Features:

  • Operating voltage 5V
  • Output low black line, a white line output high
  • Potentiometer for adjusting sensitivity (adjusting distance)
  • 3 LED indicators
  • With fixed bolt hole for easy installation



Pin Definition:

  • VCC            Voltage Supply ( 5 V)
  • GND            Ground
  • L                  Signal from L infrared sensor     (high / low)
  • C                 Signal from C infrared sensor (high / low)
  • R                 Signal from R infrared sensor (high / low)
