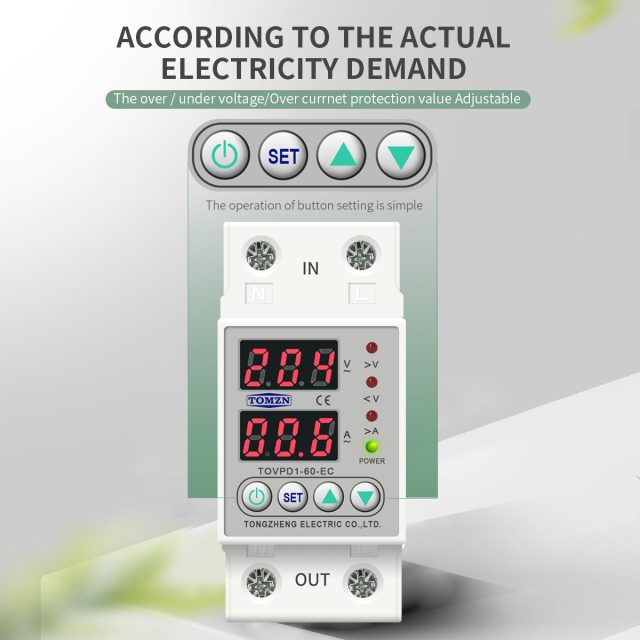

Adjustable Over Voltage and Under Voltage Protective Device Protector Relay TOMZN TOVPD1-63-EC

1.Model number:TOVPD1-60-EC
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A  Adjustable(default:40A)

1,800.00

Description

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9. Fault inquiry: Press the UP button from more than 12S
Product Parameters:
1.Model number:TOVPD1-60-EC
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A  Adjustable(default:40A)
4.Over-voltage protection value range:230V~300~OFF(default:270V)
5.Under-voltage protection value range:140V–210V –OFF(default:170V)
6.Over-current adjustment range:1-40A (default:20A) 1-63A  (default:40A)
7.Power-on delay time:1s~500s(default:10s)
9.Power consumption : <2W
10.Electric machinery life : 100,000 times
11.Installation:35mm DIN rail
