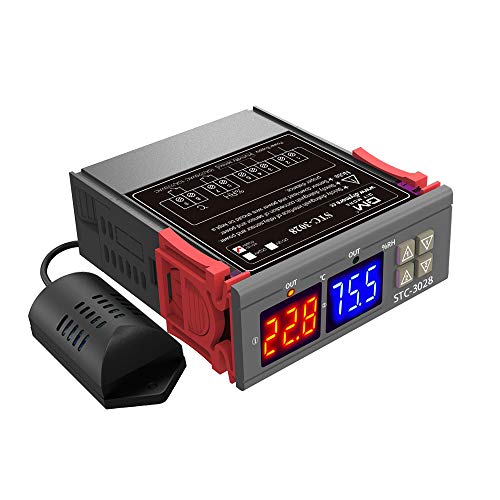

• 110-220V STC 3028 Display Temperature Humidity Thermostat Controller Temperature.

STC 3008 STC-3018 STC-3028 Dual Digital Temperature Humidity Controller Thermostat 10A With NTC Probe Thermo-regulatory.

• ABS flame retardant plastic shell, more safe to use.
• Microcomputer intelligent digital display thermostat, dual display dual temperature.
• Suitable for automatic switching of refrigeration and heating devices such as seafood machines and cooling water machines.
• The large and clear digital display shows measuring temperature, high accuracy of temperature measuring and controlling.
• With wide temperature measuring range and controlling range, comes with a integrated sensor.

Specification:

• Front panel size: 75×34.5(mm)
• Assembly size: 71×29(mm)
• Product size: 75×34.5×85 (mm)
• Sensor length: 1 meter (including the probe)
• Range: -55-120 Celsius Accuracy:
• 0.1 Celsius Sensor error delay: 1 minute
• Power supply: DC 12V DC 24V AC 110-220V
•  Sensor: NTC sensor
• Relay contact capacity: Cool (10A/240VAC); Heat
• (10A/240VAC) Ambient temperature: 0-60
• Celsius Storage temperature: -30-75 Celsius
• Relative humidity: 20-85% (No condensate)

Features:

• Can display the temperature and humidity simultaneously.
• High accuracy and wide measuring .
• Stable performance, supports long time use.
• With large and clear display for better readability.
• Applied for cabinet control, seedling heat mat, aquarium, pet breeding, incubation, BBQ, electric radiator, electric oven, etc.

Set startup temperature(humidity):

Press the “up” button once to display the starting temperature(humidity). Long press the “up” button for about 3 seconds,The required temperature(humidity) can be set by the up and down keys

Set the stop temperature(humidity):

Press the “down”button once to display the stop temperature(humidity). Long press the button for about 3 seconds and the stop temperature(humidity) number flashes. The required temperature(humidity) can be set by the up and down keys

Temperature ( hunidity) correction:

Press “up”  and “down button at the same time.

Set start up temperature:

Press the “up” button to the starting temperature. Long press the “up” button about 3 seconds, the desired

temperature can be keys through the up and down The stop temperature:

Press the button to the stop temperature. Long press button about 3 seconds and the stop temperature number flashes. The desired temperature can be tested by the up and down.
