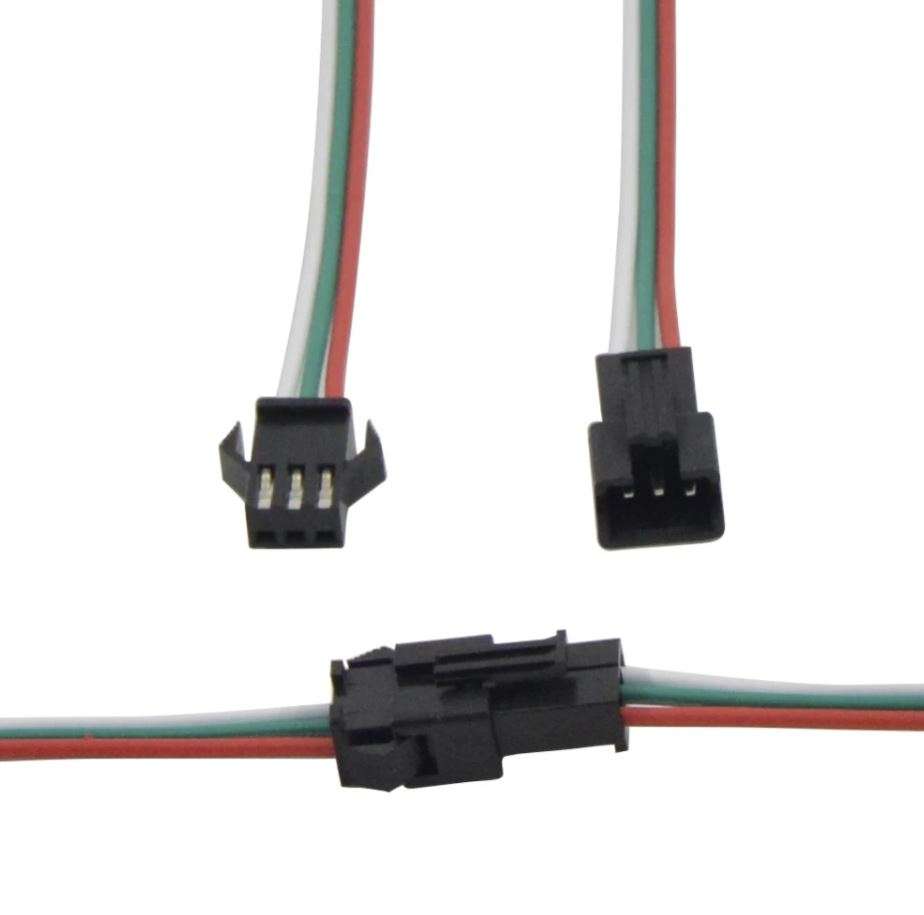

3 Pin JST SM Connector (Male , Female pair)

Overview of 3 Pin JST SM Connector (Male, Female pair)

The 3 Pin JST SM Connector is a popular electrical connector used in a variety of applications such as LED strips, RC toys, and small electronic devices. It consists of a male and female pair of connectors that can be easily plugged and unplugged to connect and disconnect circuits.

Design and Compatibility

The JST SM Connector has a pitch of 2.54 mm, making it compatible with a wide range of PCBs and breadboards. The male connector has three metal pins that fit snugly into the female connector’s receptacle, ensuring a secure connection. The female connector has three corresponding sockets to receive the male connector pins.

Durability and Ease of Use

The JST SM Connector is known for its durability and ease of use. It is made of high-quality materials that ensure reliable connections, even in harsh environments. The male and female connectors are usually color-coded to make it easy to distinguish between positive, negative, and ground connections. The JST SM Connector is designed to be polarized, preventing accidental reverse connections that could damage the circuit or components.

Applications

The 3 Pin JST SM Connector is commonly used in various electronic applications, including:

• LED strips
• RC toys
• Small electronic devices

Conclusion

The 3 Pin JST SM Connector is a small, reliable, and durable connector that is widely used in electronic applications. Its pitch size, color coding, and polarization make it easy to use and ensure a secure connection.
