4DOF Robotic Arm EEZYbotARM MK2 Pakistan( Color May Very )

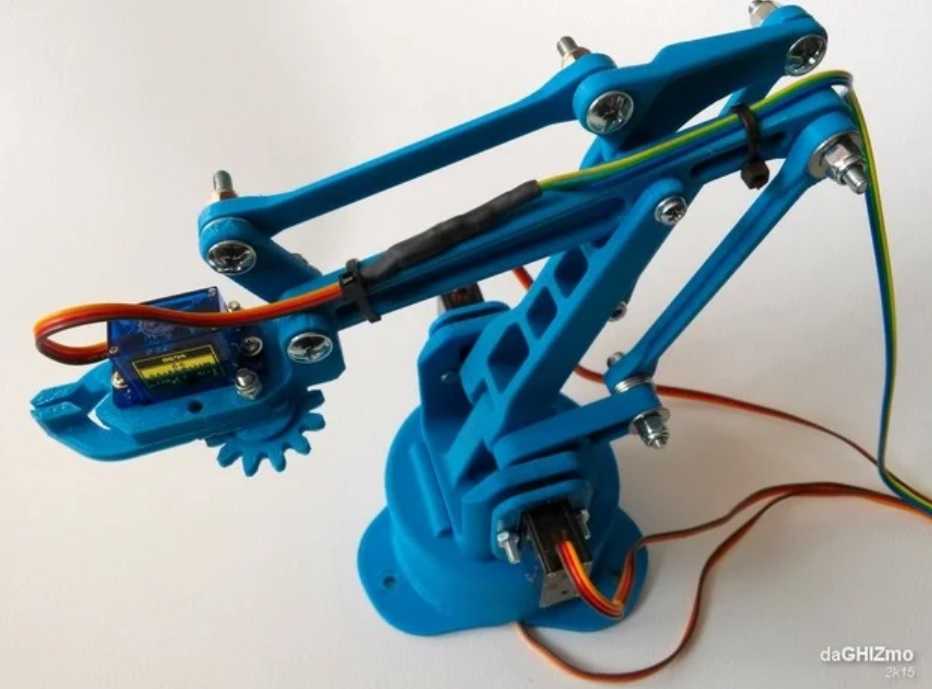

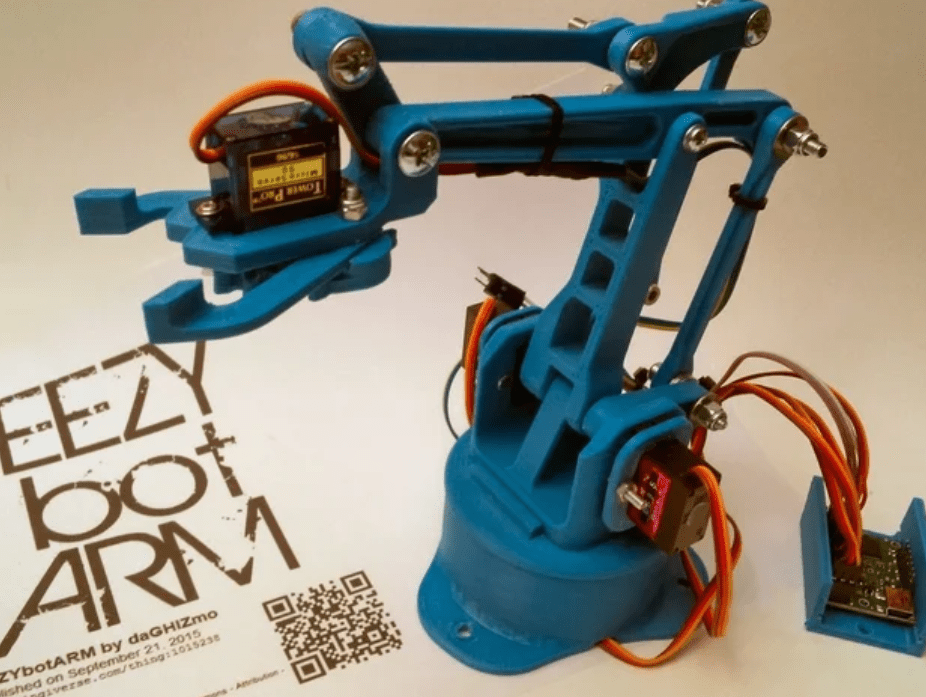

4DOF Robotic Arm Pakistan This is a 3D printed robotic arm

The intent was to design something “easy” and cheap to built with a good visual impact also.

spent time to look around the web at some examples available that could be a good starting from, and between all I found interesting the phenoptix MeArm V4 project (http://www.thingiverse.com/thing:360108) especially for the simplicity and low cost of parts involved.
So I kept only the kinematics geometry and redesign all parts including the gripper

4DOF Robotic Arm Pakistan
updated instruction and round ramp stl (R01), added ball stl
preliminary tests video


I made an Instructables here : http://www.instructables.com/id/EEZYbotARM/

In all joint I use M4 screws with round head
For the vertical arm I prefer to guarantee a better precision using two brass pipes. the lower one stay in position kept by the servos, the upper one is crossed by a M3 screw (I’ll post a better explaining image)

First tests has been made with cheap servo sg90

than I changed the more stressed with metal gear servos MG90
only for the claw I left the plastic one (but this can be of your choice)

For driving the bot I made a lot of experiment using all the available method with arduino : sketches, potentiometers, joystick, WII nunchuck …. but at the end I discover a nice controller from Pololu that solves all the problem related to the servo driving in the easiest way. You can attach up to 6 – 12 – 24 servos depend of the controller type and it is provided with a software that give you the power to drive the servo in manual moving slides in the mean time you are able to set the values of speed and acceleration for any singular item. You can also build sequences of commands in a easy way, store them in the controller o get the code automatically. GREAT !

here the link of the Pololu servo controller

Pakage list:

Note: Robotic Arm kit fully Unassembled

  1.  3 Tower Pro MG90S Servos
  2.  1 SG90 servo (gripper) + 1 optional for the loop ramp
  3.  7 M4 self locking nuts
  4. 15 M4 washers
  5. 11 M3 nuts
  6. 1 M3 x 30 screw
  7.  2 M3 washers
  8.  6 M3 x 12 hex screw
  9.  2 M3 x 12 TCEI screw
  10. 2 M4 x 20 TCEI screw
  11. 5 M4 x 20 round hed hex recess screw
  12. 1 brass pipe 4 x 3 x 22 + n°1 4 x 3 x 26
  13. Full Printed Arm Kit

Test video:
