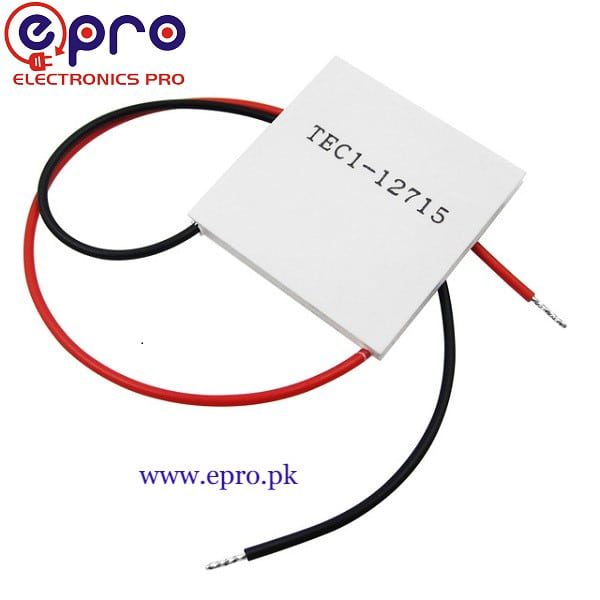

Description about Peltier TEC1-12715 12V Thermoelectric Cooler Plate Module In Pakistan

Peltier 12715 Thermoelectric Cooler Plate is a Solid-state. It is vibration-free. It is noise-free. Peltier 12715 Thermoelectric Cooler Plate Module is easy to install and operate. Its hot surface needs a good heat sink. Peltier-12715 is a 40 x 40mm thermoelectric cooler 15A Peltier module. This module is a simple application of the Peltier thermoelectric effect. This Peltier module features 127 semiconductor couples in the area of 40 x 40mm. These thermoelectric coolers also are known as TEC or Peltier module. It creates a temperature differential on each side. Peltier’s one side gets hot and the other side gets cool. Due to this functionality =, they can be used to either warm something up or cool something down, depending on the user, which side user use. By the Peltier temperature differential, the user can take advantage of it and generate electricity.

If the user removes the heat from the hot side then Peltier works very well. After turning on the device, its hot side will heat quickly. And the cold side will cool quickly. It is important to remove heat from the Peltier if the user doesn’t remove the heat the Peltier will quickly reach stasis and do nothing. Users can use the old computer CPU heatsink. users were also able to use a computer power supply and CPU heatsink to make the cold side so uncomfortable we could not hold out a finger to it.

This Peltier thermoelectric cooling module is a semiconductor-based electronic component that functions as a small heat pump. When we apply the DC power source to a TEC, heat will be transferred from one side of the module to the other side of the module. This process creates a cold and hot side. These Peltier used in industrial areas. For example computer CPU, CCDs, portable refrigerators, medical instruments, and so on. All types of Peltier available at epro.pk.

TEC1-12715 vs TEC1-12705, TEC1-12706

it has thinner alumina plates (better thermal conductivity) than the more common TEC1-12705 and 12706. it has fatter wires. it can be run at up to 200 watts and with sufficient cooling.  100 watts per module or below are recommended for excellent performance and longevity. you can push a 12705 to 80 watts or more. The 12715 gives better performance at 100-180 watts with appropriate cooling.

12715 12V Thermoelectric Cooler Plate Module. It is solid-state. And vibration-free. It is also noise-free. It is easy to install and we can operate easily. It needs a good heat sink.

Specifications of 12715 Thermoelectric Plate:

Product name is thermoelectric plate module
The model number is TEC1-12715
Its color is white
Couples are127
Voltages are 12V
Umax is 15.4V
Imax current is 15A
Max power consumption is 231W
Tmax is almost 70°C
Qcmax △T=0(W): 137W
Size is 40 x 40 x 3.3mm
Weight is approximate 50g

Package included:

One TEC1-12715 cooler plate module
