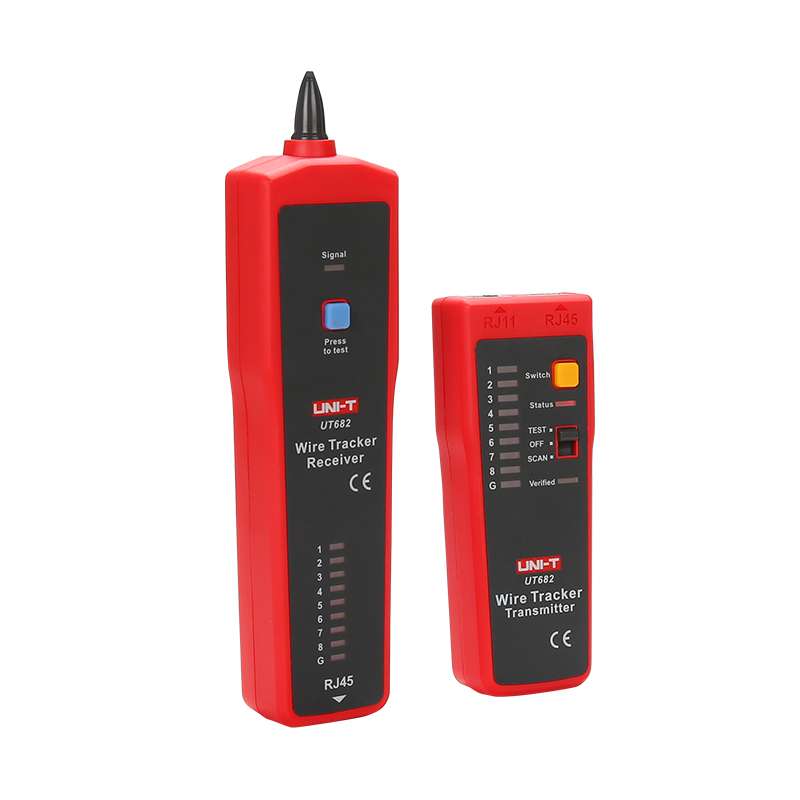

The UNI-T UT682 wire tracker is a versatile and efficient tool for identifying and tracing wires within a network. With its advanced technology, it can locate and track ethernet, telephone and power cables without the need to open their insulation. This saves time and effort in troubleshooting and maintenance tasks.

The transmitter sends a signal through the wire which is then picked up by the receiver. The receiver displays the location of the wire on its screen, making it easy to identify the specific cable you need to work on. The UT682 also has a built-in speaker which emits a sound to indicate the location of the wire, making it even more convenient to use.

The UT682 wire tracker is especially useful for debugging communication cables and audio/video cables. It is a must-have tool for network administrators, IT professionals, and electricians who need to maintain and troubleshoot complex wiring systems.

In addition, the UT682 wire tracker is easy to use and comes with a user-friendly interface. The device is powered by a 9V battery, making it portable and convenient to use on the go. With its compact and lightweight design, the UT682 can easily fit into a tool bag and be taken to any job site.

In conclusion, the UNI-T UT682 wire tracker is an essential tool for anyone working with networks, and audio/video cables. It is a reliable, efficient, and cost-effective solution for identifying and tracing wires, saving time and effort in maintenance and troubleshooting tasks.

Specifications:

• Specifications Range UT682
• Wire tracking features Wire types LAN cable\telephone line\coaxial cable\electric wire
• Indication light for signal strength √
• Live switchboard wire tracing √
• Switchboard wire tracing distance ≥100m
• Telephone lines tracking distance ≥3000m
• Unshielded cables tracking distance ≥320m
• Shielded cables tracking distance ≥320m
• Open and short circuit test √
• Polarity indication for
• telephone lines DCV function, range:
• ±(5V~52V) √
• Telephone lines and LAN cables distinction Jacks distinction √
• Broken wire tracking √
• Transmitter output voltage ≥12V peak-peak
• Transmitter low battery indication 6.6V±0.5V
• Transmitter power supply 9V battery √
• Max transmitter working current 25mA
• Headphone jack for the receiver √
• Receiver power supply 9V battery √
• Max receiver standby current ~10mA √
• Max receiver operating current <40mA (AC, RMS) √
• Wire alignment Line sequence measurement 9 LEDs (LED1~LED8, LED_G) √
• Line sequence measuring speed Fast and slow selectable √
• LAN cable: shielded/unshielded indication √
• Transmitter input
• voltage protection 　 52V DC
• Operating environment Operating temperature: 0~40℃; Storage temperature: -10~50℃
• Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m
• General Characteristics
• Product color Red and grey
• Product net weight Transmitter-125g, receiver-153g
• Product size Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm

Package Includes:

1 x UNI T UT682 Wire Tracker
