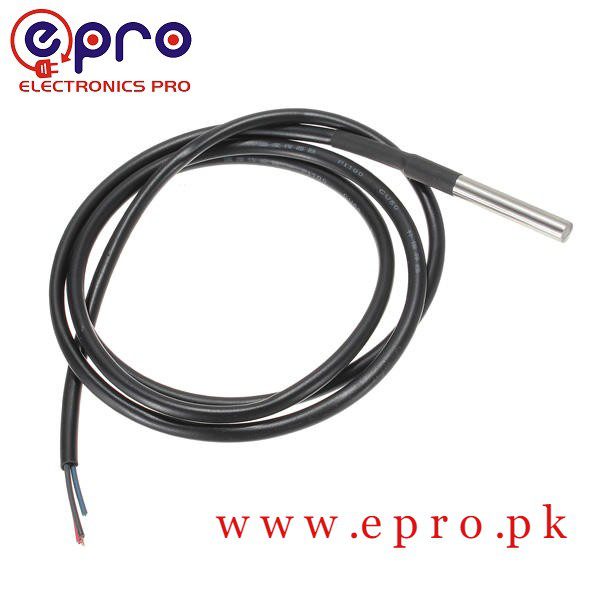

Waterproof DS18B20 Temperature Sensor

DS18B20 Waterproof Temperature Sensor is a one-meter long sensor that consists of a DS18B20 sensor. It is a sealed and pre-wired waterproof DS18B20 temperature sensor probe. It is very useful when someone wants to measure anything which is far away. And it is also handy in wet conditions. It is a digital temperature sensor and the user did not get any signal degradation even over a long distance. These DS18B20 sensors are precise and they can also give up to 12 bits of precision from the onboard digital- to – analog converter. These temperature sensors work great with any microcontroller using any single digital pin. We can also connect multiple ones to the same pin. Each one has a unique 64 bits ID burned. It is useable with 3 to 5 volts systems. There is one downside of this sensor is they use the Dallas 1-wire protocol, and which is somewhat complex. This protocol requires a bunch of code to parse out the communication. When you are using this temperature sensor with a microcontroller put a 4.7K resistor to the sensing pin. Because it required as a pull up from the DATA to the VCC line. Just click and Get all types of temperature Sensors at epro.pk.

Specifications of Waterproof DS18B20 Temperature Sensor:

1. Its temperature range is -55 to 125-degree centigrade.
2. Its selection resolution is 9 to 12 bits
3. It contains 1 wire interface.
4. It requires one digital pin for communication.
5. It has a unique 64 bit ID burned into the chip.
6. We can share multiple sensors on one pin.
7. It has +- 0.5-degree centigrade accuracy from -10 to 85-degree centigrade.
8. It has a temperature limit alarm system
9. It is useable with 3 to 5.5V power/data.
10. Its query time is less than 750ms.

Features of DS18B20 Sensor:

• It consists of a probe by a new original installation import DS18B20 temperature sensor.
• Each pin of this sensor uses a heat-shrinkable tube to stop short-circuit.
• It also has internal sealing glue, and it is also waterproof and moistureproof.
• It contains stainless steel tube encapsulation and waterproof moisture-proof prevents rust.
• The size of the stainless steel shell is 6 x 45mm.
• The length of the lead is 100cm.
• Its power supply value is 3.3 to 5V.
• Its temperature range is -55 to 125-degree centigrade.
• This stainless steel tube diameter is 6mm by 30mm long.
• Its cable is 1 meter long.
• This waterproof sensor contains a DS18B20 temperature sensor.
• It contains 3 wires.

1.                              The red wire is for 3 to 5V.
2.                              The black wire is for GND.
3.                              White wire for data.

Connections:

• There is a Red wire. that is for VCC/VDD.
• There is White or Yellow wire which is for DATA.
• There is a BLACK  wire which is used as Ground.

Package Included:

• One Piece of Waterproof Temperature Sensor DS18B20
