Do You Want to Know What is INA129 Instrumentation Amplifier Module?

INA129 Instrumentation Amplifier Module is a very useful amplifier. Arduino is compatible SCM & DIY kits module board- the design of the operational amplifier and its small size make them for a wide range of applications. ina 129 Arduino is an Instrumentation Amplifier Module now in Pakistan. ina126 has current feedback input circuitry that provides a wide bandwidth. it provides wide bandwidth even at high gain. here, a single external resistor sets to gain from 1 to 1000. this INA128-HT provides an industry-standard gain equation. universal instrumentation amplifier evaluation module gain equation is compatible AD620. ina128p esp is laser trimmed for very low offset voltage (25uV Typ). INA128-HT has also consisted of very low offset voltage (25uV ) and it also has high common-mode rejection. INA128-HT and INA 129-HT have the common-mode rejection of (93 dB at G >= 100). ina129 Instrumentation Module is the High Precision Low Power Instrumentation Amplifier Module. it is Arduino Compatible SCM & DIY kits module board. INA129-HT High Precision Low Power Instrumentation. ina129 Module is an important one and available at ElectronicsPro.

Specs of  INA129 Instrumentation Amplifier Module:

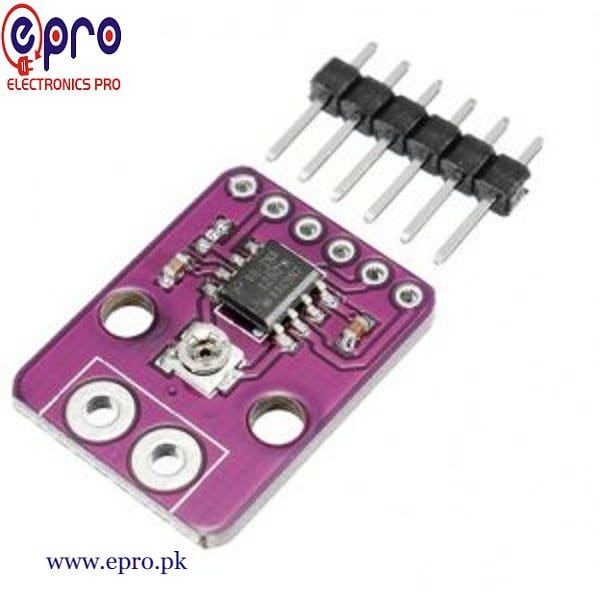

1. Type: CJMCU-29 INA129-HT Board
2. Size: 20mm x 16mm
3. The INA128-HT and INA129-HT are low-power
4. A single external resistor sets any gain from 1 to 10000.
5. The INA128-HT provides an industry-standard gain equation;
6. the INA129-HT gain equation is compatible with the AD620.
7. These devices operate with power supplies as low as ±2.25 V
and quiescent current of 2 mA
8. Internal input protection can withstand up to ±40 V without damage.
9. The INA129-HT is available in 8-pin ceramic DIP and 8-pin ceramic surface-mount packages, specified for the -55°C to 210°C temperature range.
10. The INA128-HT is available in an 8-pin SOIC-8 surface-mount package, specified for the -55°C to 175°C temperature range.
