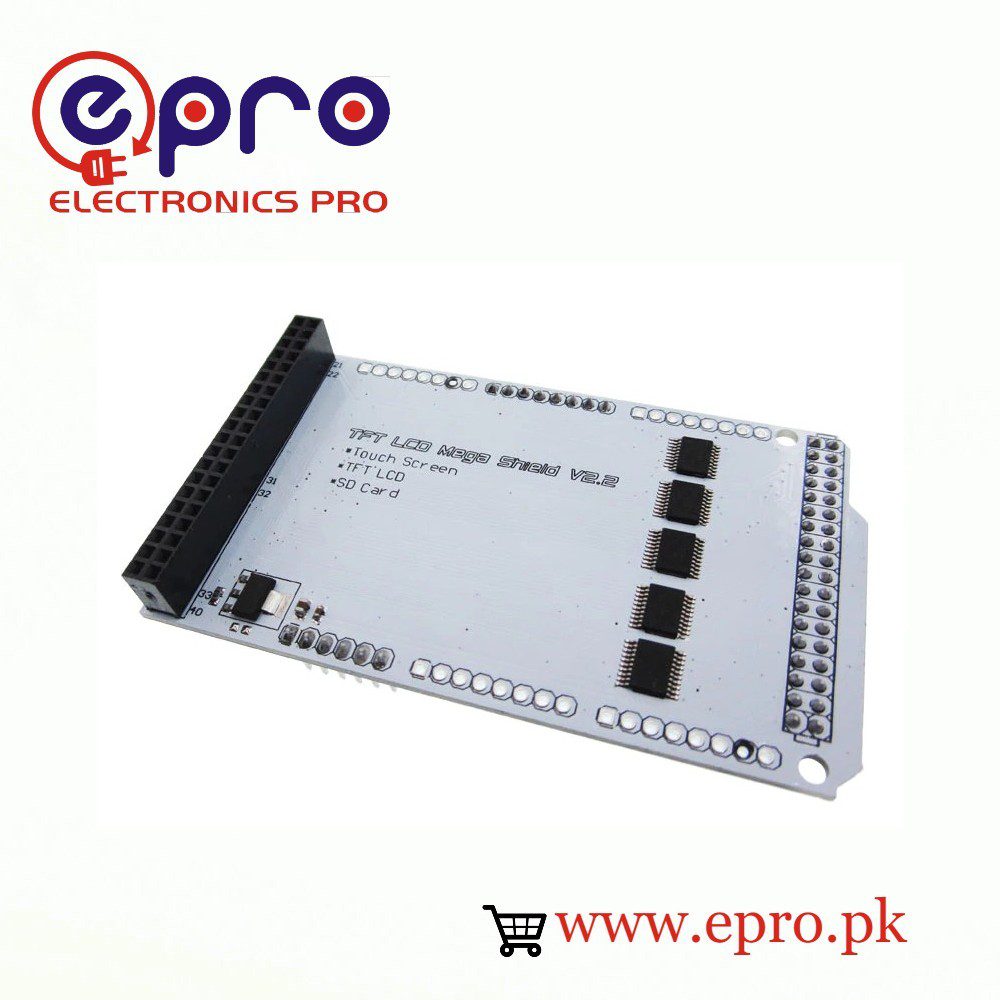

Product Description of Arduino Mega TFT LCD Shield

It is TFT LCD is an LCD touch screen module. It is good for Arduino projects because it is powerful and multifunctional.  SSD1289 controller is included by the screen. It includes an 8 and 16-bit data interface. It also contains MCU like STM32 and AVR and also 8051. It is designed with a touch controller. Here they use XPT2046. The touch interface has 40 pins breakout. It has a touch sensor and a touch controller.

Features of TFT Touch Screen Shield:

This LCD is TFT Touch LCD and it works on 3.3V. but we can not use it directly on the top of a standard Arduino Board. TFT01LCD is compatible with the standard Arduino UNO board. This touch LCD can be plugged directly into the Arduino Board. This LCD support the current mode and it also has sufficient Mega2560 IO. TFT 3.2 Inch MEGA Touch LCD Expansion Board Shield V2.2 IC Partial Pressure Compatible with UNO MEGA 2560 in Pakistan. When we are using the touch screen or SD card interface than in this case of face 328S will not exist. This touch LCD supports 8-bit mode. It can be used the SD card and touch screen interface at the same time. It adopts the IC voltage division and it makes this TFT LCD more stable. This LCD TFT Arduino Mega Sheild is for the module of 3.2 inches. This touch LCD Arduino mega shield supports 16-bit mode. This also has enough pins for using the SD card and touch function at the same time.

Specifications:

Its operating voltages are 5V.

Its input voltages are 7 to 12V.

Its input voltage is 6 to 20V.

Its digital pins are 54

Its analog input pins are 16.

The size of the DC current pin is 40mA.

3.3V for DC current pin 50mA.

Its flash memory is 256KB

Its SRAM is 8KB.

Its EEPROM is 4KB.

Its clock speed is 16MHz.
