ADC ADS1115 16bit Analog to Digital Converter in Pakistan

  • 2 to 5.5V is its wide supply range.
  • 8SPS to 860SPS is its programmable data rate.
  • It has an internal low-drift voltage reference.
  • It contains an internal oscillator.
  • It has internal PGA.

490.00

Description

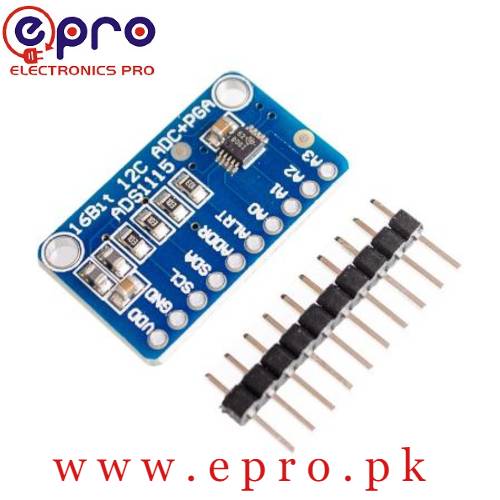

Raspberry Pi ADC ADS1115 16-Bit ADC 4 Channel with Programmable Gain Amplifier:



This is a programmable gain amplifier with ADS1115 16-bit ADC of 4 channels. ADS1115 module is Raspberry Pi and microcontrollers without an Analog-to-digital converter. When you want a higher-precision ADC, this ADS1115 provides 16-bit precision at 860 samples/ second over I2C.

This module can be configured as 4 single-end input channels or two differential channels.  This included a programmable gain amplifier up to x16 to help boost up a smaller single/differential signals to the full range. This ADC can run from 2V to 5V power/logic. It can measure a large range of signals and its super easy to use.  This module is a 16-bit general-purpose converter.

This chip fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Its interfacing is done through I2C. the address can be changed to one of four options so you can have up to 4 ADS1115’s connect on a single 2-wire I2C bus for 16 single end inputs.

There is an example code for both Raspberry Pi and Arduino. For this purpose connect GND to Ground, VDD to your logic power supply, and SCL/SDA to your microcontroller’s I2C port and run the example code to start reading data. Get all types of Sensors, modules, ADC, Drone frames and motors and much more from Pakistan’s Best online store epro.pk.



Pin Description of ADS1115:



  • It has an A0 to A3 analog pins.
  • It has an ALRT or Alert input pin.
  • It also contains Address Pin.
  • It has SDA and SCL pins.
  • It has a Ground pin.
  • It also contains a VDD pin.



Features of ADS1115:



  • 2 to 5.5V is its wide supply range.
  • 8SPS to 860SPS is its programmable data rate.
  • It has an internal low-drift voltage reference.
  • It contains an internal oscillator.
  • It has internal PGA.
  • It has an I2C pin selectable addresses interface.
  • It has 4 single ends and 2 differential inputs.
  • It contains a programmable comparator.
  • This module/chip uses I2C 7 bit addresses between 0x48 – 0x48 and it is selectable with jumpers.
  • Is low current consumption.
  • It has a continuous mode. Only 150uA single-shot mode, and auto shut-down.



Package Included:

One Piece of ADS1115 16 bit ADC -4 channel with programmable Gain Amplifier.



Related Link:



 About the ADS1115 External 16 Bit ADC

Different Types of Analog to Digital Converter
