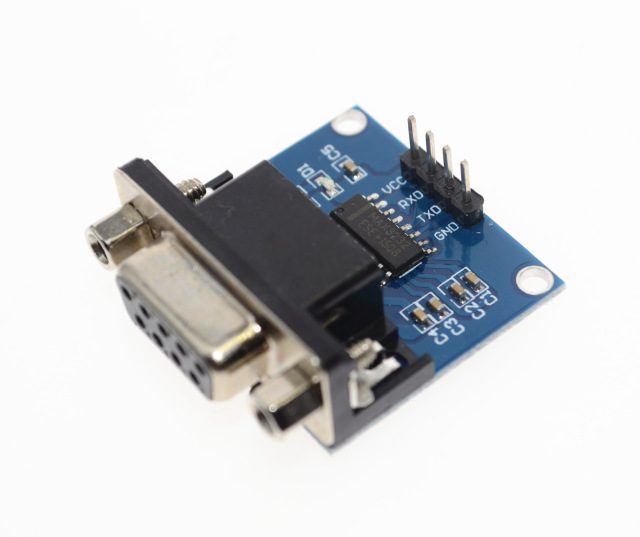

MAX3232 RS232 to TTL Serial Port Converter Module DB9 Connector MAX232

SKU: N/A

RS232 serial interface converter module for UART standard with 9-pin DB-9 connector. The conversion system is the SP3232 transceiver (compatible with MAX3232), it operates in the voltage range from 3.0 V to 5.5 V.

100.00

Description

RS232 serial interface converter module for UART standard with 9-pin DB-9 connector. The conversion system is the SP3232 transceiver (compatible with MAX3232), it operates in the voltage range from 3.0 V to 5.5 V.



  • System power supply: from 3.0 V to 5.5 V
  • Transceiver: SP3232 – compatible with MAX3232
  • Interface output UART – goldpin raster 2,54 mm
  • VCC – Supply voltage in the range from 3.0 V to 5.5 V.
  • GND – System weight.
  • RX – UART interface input line, readout.
  • TX – UART interface output line, sending.
  • CTS – hardware flow control – signals the readiness of data to be sent.
  • RTS – hardware flow control – query for the possibility of sending data.
  • RS232 connector – DB9 socket
  • Mounting holes, with screws included
  • Board dimensions: 45 x 31 mm
