TB6600 Hybrid Stepper Motor Driver (4.5A) in Pakistan

SKU: N/A

Stepper Motor Driver TB6600

1) Working voltage DC 10V-45V. Recommend the use of switching power supply DC32V.

2) The use of high-speed optical coupling 6N137, ensuring high speed without losing step.

3) The use of Toshiba’s new high-current, high-voltage TB6600HG new original chip, there are low-pressure          shut-off, overheating parking and over-current protection circuit, short circuit protection and increased              compared to TB6560.

4) The maximum rated output reaches: ± 4.5A.

5) for less than 4.2A 42,57,86 two-phase / four-phase / four-wire / six wire stepper motor.



780.00

Out of stock

Description

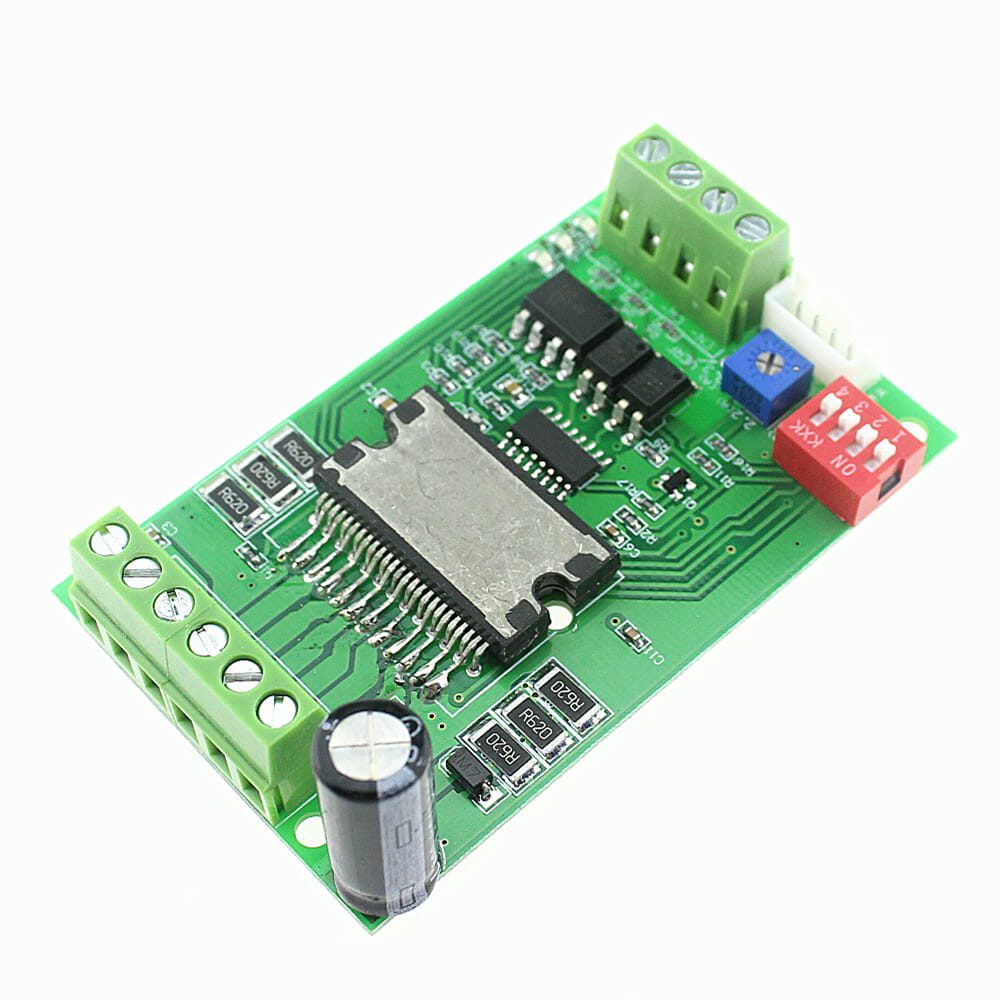

What is TB6600 Hybrid Stepper Motor Driver (4.5A)



TB6600 Hybrid Stepper Motor Driver (4.5A) is a high-quality, high power and cost-effective drive. TB6600 is high current 4.5A, high voltage 45V, short circuit protection, and its performance is superior.10 to 45V are working voltages. Recommended DC voltages are 32V. In Hybrid Stepper Motor Driver high-speed optical coupling 6N137, which ensures high speed without losing a step. TB6600 use new high-current, high-voltage. TB6600  is a new original chip, it has low-pressure shut-off, overheating parking and over-current protection circuit =, short circuit protection and increased compared to TB6560. TB6600 maximum rated output reaches to 4.5A. 42,57,86, two-phase/four-phase/ four-wire/ six-wire stepper motor use for less than 4.2 A. It has an automatic semi-flow feature. It is subdivided into full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments. Width, Length, and hight of Hybrid Stepper Motor Driver (4.5A) are 82* 50 * 35. Now it is available at ElectronicsPro.

Specs of TB6600 Hybrid Stepper Motor Driver (4.5A):

  • The output current is infinitely adjustable to meet your demand for a variety of applications.
  • Hybrid Stepper Motor Driver (4.5A) output current is infinitely adjustable to set the current for a variety of applications.
  • it has an automatic semi-flow feature. and it also has a semi-automatic flow switch, which makes it easy to use.
  • TB6600 using high-speed optical coupling 6N137 ensure high speed without losing a step.
  • if you have back panel printed it means you have broken setup instructions.

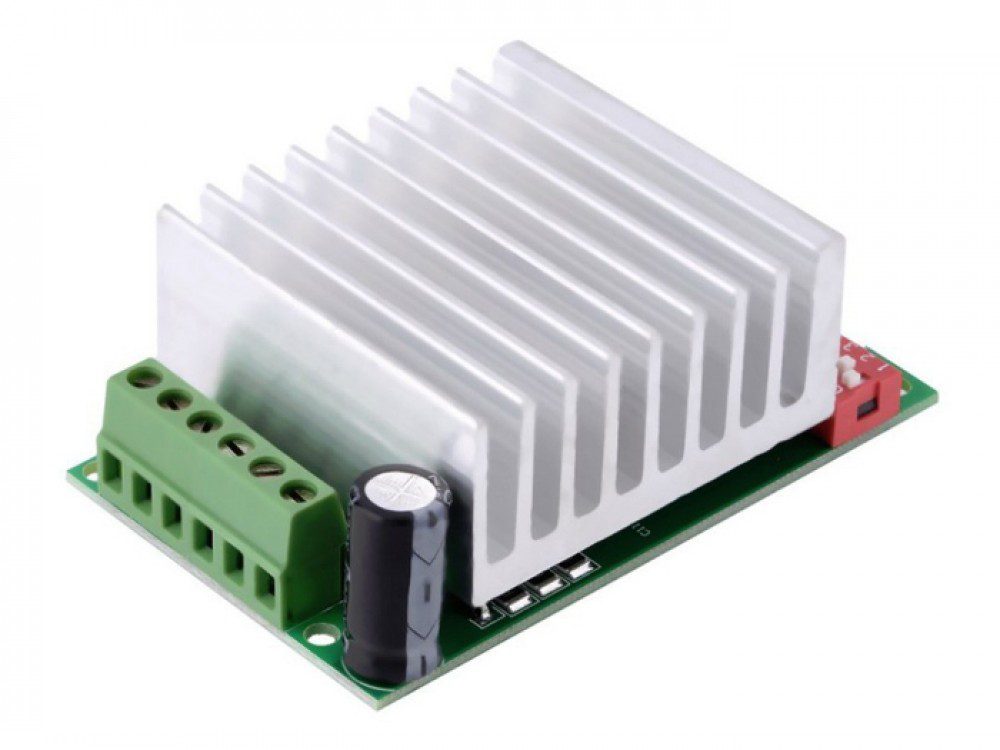

  • TB6600 is used to increase the heat sink, it is good for heat dissipation.
  •  Output short-circuits protection, the use of mind.
  • Using common anode input mode, there are two input terminals, wiring more convenient.
