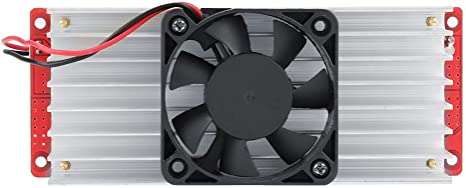

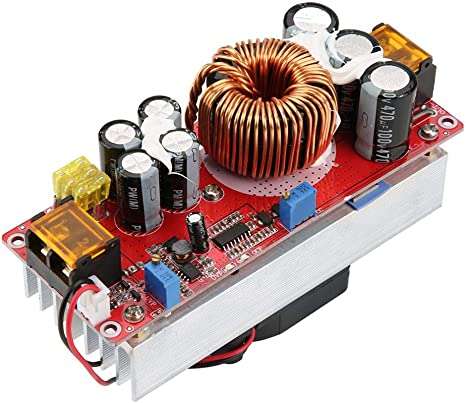

DC-DC Converter Module Boost DC Step Up Voltage Regulator CV Stabilizer Power Supply Module 10-60V to 12-97V 1500W 30A
₨3,800
Specification:
Name: DC-DC 1500W Boost Converter
Input: 10-30V, 35-40A & 31-60V, 30-35A
Output: 12-97V (cannot be used to step down voltage), up to22A(please enhance heat dissipation when current is over 15A)
Quiescent Current: 15mA(when convert 12V to 20V, higher output voltage will increase quiescent current)
Operating Temperature: -40 to 85(if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz Conversion Efficiency: 92% to 97%
Installation Method: Four 3mm standoffs Wiring Method: Terminal blocks
Protection:
- Reverse Input Protection: Yes (150A power MOS reverse protection)
- Input Low Voltage Protection: Yes (10V-50V adjustable, self-recovery)
- Input Over Current Protection: Yes (automatically protect when input is more than 40A, and power supply voltage will not increase)
- Short Circuit Protection: Yes (input 60A fuse) please operate carefully, try not to cause short circuit.
- Reverse Input Protection: Yes ((150A power MOS tube, can be connected reversely for long time)
