Introduction to ESP32 NodeMCU Development Board

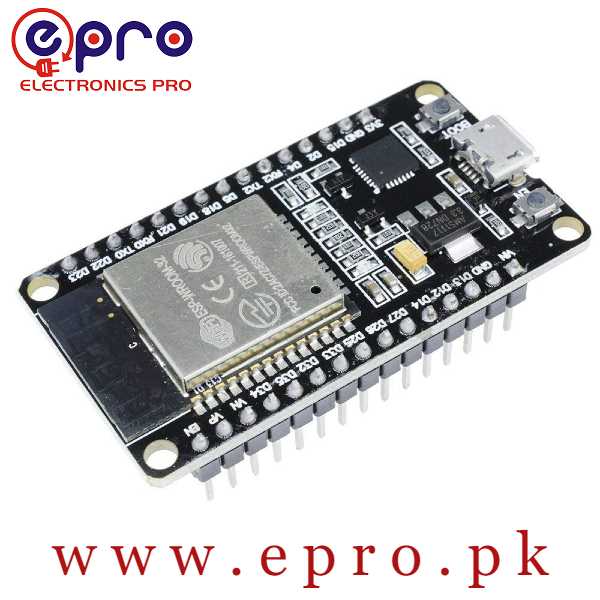

The ESP32 NodeMCU Development Board, created by NodeMCU, serves as an evaluation platform for the ESP-WROOM-32 module. It features an ESP-32 microcontroller and integrates various functionalities such as Wi-Fi, Bluetooth, Ethernet, and low power support within a single chip. This development board offers an excellent solution for IoT applications and is readily available from Pakistan’s leading online store, epro.pk.

Overview of the ESP32S NodeMCU Development Board

The ESP32S NodeMCU Development Board is a versatile device that caters to a wide range of applications. It serves as a universal low power IoT sensor hub, enabling seamless integration of multiple sensors for data acquisition and analysis. Additionally, it finds applications in home automation systems, acting as a central control unit for various smart devices in a household.

Application of the ESP32 Cam Node MCU Development Board

1. Universal Low Power IoT Sensor Hub:
   • The ESP32 NodeMCU Development Board is well-suited for serving as a central hub for connecting and managing a multitude of low power IoT sensors. It provides a reliable and efficient platform for collecting data from sensors spread across different locations.
2. Home Automation:
   • With its extensive capabilities and connectivity options, the ESP32 NodeMCU Development Board plays a pivotal role in home automation systems. It can control and monitor various devices, such as lighting, security systems, and temperature sensors, enhancing convenience and energy efficiency.
3. Universal Low Power IoT Recorder:
   • This development board can act as a low power IoT recorder, capturing and storing data from multiple sensors. It serves as a data logging device, enabling analysis and visualization of long-term trends and patterns.
4. Mesh Network:
   • The ESP32 NodeMCU Development Board supports mesh networking, allowing devices to communicate with each other in a decentralized manner. This feature is particularly useful in large-scale IoT deployments, where the range and reliability of communication are critical.
5. Video Streaming of the Camera:
   • With its integrated camera support, the ESP32 NodeMCU Development Board enables video streaming applications. It can capture, process, and transmit video data over the network, making it suitable for surveillance systems, video conferencing, and remote monitoring.
6. Industrial Wireless Control:
   • The development board’s robust wireless capabilities make it an ideal solution for industrial control applications. It can wirelessly communicate with various devices and machines, facilitating remote monitoring, control, and automation in industrial settings.
7. OTT TV Box / Set-Top Box Device:
   • The ESP32 NodeMCU Development Board can be utilized as an OTT (Over-The-Top) TV box or set-top box device. It enables seamless streaming of media content over the internet, providing a comprehensive entertainment solution.
8. Baby Monitor:
   • By integrating audio and video capabilities, the ESP32 NodeMCU Development Board can be used as a baby monitor. It allows parents to remotely monitor their baby’s activities, ensuring their safety and well-being.
9. Smart Socket:
   • With the ESP32 NodeMCU Development Board, it is possible to create smart sockets that can be controlled remotely. This functionality adds convenience and energy efficiency by allowing users to monitor and control power usage.
10. Sensor Networks:
    • The development board’s ability to connect to various sensors and devices makes it an ideal platform for creating sensor networks. It can facilitate the gathering of data from multiple sensors, enabling advanced analytics and decision-making.
11. Wearable Electronic Products:
    • Due to its compact size and low power consumption, the ESP32 NodeMCU Development Board is suitable for wearable electronic products. It can serve as a central processing unit for wearable devices, allowing users to monitor and interact with the connected sensors and modules.
12. Wi-Fi Speech Recognition Device:
    • The ESP32 NodeMCU Development Board can be employed to build Wi-Fi speech recognition devices. It leverages the onboard Wi-Fi capabilities and processing power to enable voice-based commands and interactions.
13. Wi-Fi Location-Aware Devices:
    • With its Wi-Fi capabilities and support for localization algorithms, the ESP32 NodeMCU Development Board can be utilized to create location-aware devices. It can determine the device’s position based on Wi-Fi signals, enabling applications such as asset tracking and indoor navigation.

Specifications and Features of the ESP32 NodeMCU Development Board

1. Current Receiving: 80mA
2. Voltage Supply: 2.2V to 3.6V
3. Current Transmitting: 80mA
4. Number of Supported Pins: 30
5. Data Rate: 54Mbps
6. Frequency: 2.4GHz
7. Surface Mount Type
8. Operating Temperature: -40 to 85 degrees centigrade
9. Power Output: 16.5dBm
10. Integrated 520Kb SRAM
11. Ultra-Low-Power Management
12. 4Mb Flash
13. On-Board PCB Antenna

Understanding the Current and Voltage Requirements

The ESP32 NodeMCU Development Board requires a current of 80mA for both receiving and transmitting operations. It operates within a voltage range of 2.2V to 3.6V, providing flexibility in power supply options. It is important to ensure that the power source meets these requirements to ensure optimal performance and stability.

Number of Supported Pins and Data Rate

The ESP32 NodeMCU Development Board offers support for up to 30 pins, enabling the connection of multiple devices and sensors. This allows for the creation of complex projects with various input and output requirements. The data rate of the board is 54Mbps, ensuring fast and reliable wireless communication.

Frequency and Surface Mount Type

Operating at a frequency of 2.4GHz, the ESP32 NodeMCU Development Board utilizes the widely used ISM band, providing compatibility with existing Wi-Fi and Bluetooth devices. It features a surface mount type design, making it easier to integrate into electronic circuits and systems.

Operating Temperature and Power Output

The ESP32 NodeMCU Development Board can operate in a wide temperature range from -40 to 85 degrees centigrade. This makes it suitable for deployment in various environments, including both indoor and outdoor applications. It provides a power output of 16.5dBm, ensuring reliable wireless communication over an extended range.

Memory and Storage Capacity

Equipped with integrated 520Kb SRAM and 4Mb flash memory, the ESP32 NodeMCU Development Board offers ample space for storing program code, data, and configuration settings. This enables the implementation of complex applications without the need for external storage devices.

Ultra-Low-Power Management and Power Consumption

One of the key features of the ESP32 NodeMCU Development Board is its ultra-low-power management capabilities. It incorporates power-saving mechanisms that allow for efficient power utilization, prolonging battery life in battery-powered applications. This is particularly advantageous in IoT projects where power efficiency is crucial.

On-Board PCB Antenna

The ESP32 NodeMCU Development Board comes with an onboard PCB antenna. This eliminates the need for an external antenna and simplifies the design and assembly process. The onboard antenna provides reliable wireless connectivity, ensuring robust communication in various environments.

Package Inclusion

When purchasing the ESP32 NodeMCU Development Board, the package typically includes one piece of the development board itself. Additional accessories or documentation may vary depending on the supplier or retailer. It is advisable to check the package contents to ensure that all necessary components and resources are included.

Benefits and Advantages of the ESP32 NodeMCU Development Board

The ESP32 NodeMCU Development Board offers several benefits and advantages:

1. Versatility: With its wide range of functionalities and support for various applications, the development board provides flexibility and adaptability in project implementation.
2. Integration: The board’s integration of Wi-Fi, Bluetooth, Ethernet, and low power support simplifies the connectivity aspect, allowing for seamless communication with other devices and systems.
3. Compact Size: The compact size of the board makes it suitable for projects with space constraints or those requiring portability.
4. Rich Documentation: As a popular development board, the ESP32 NodeMCU has extensive documentation, tutorials, and community support, making it easier for developers to get started and troubleshoot issues.
5. Cost-Effective: The board offers a cost-effective solution for IoT projects, providing a wide range of functionalities and features at an affordable price point.

Limitations and Considerations

While the ESP32 NodeMCU Development Board has numerous advantages, it is important to consider certain limitations and factors:

1. Limited GPIO Pins: The board supports up to 30 pins, which may be insufficient for complex projects requiring a large number of input and output connections.
2. Power Consumption: While the development board incorporates power-saving mechanisms, it is still essential to optimize power consumption in battery-powered applications to ensure longer battery life.
3. Processing Power: The ESP32 microcontroller on the board has a limited processing power compared to more advanced microcontrollers or single-board computers. This may impact the performance of resource-intensive applications.
4. External Components: Depending on the project requirements, additional external components such as sensors, actuators, and power management modules may be necessary, adding complexity and cost to the overall system.
5. Compatibility: It is crucial to ensure compatibility between the ESP32 NodeMCU Development Board and the software frameworks or development environments being used, as compatibility issues may arise.

Conclusion

The ESP32 NodeMCU Development Board serves as a powerful and versatile platform for evaluating and implementing IoT projects. With its integrated Wi-Fi, Bluetooth, Ethernet, and low power support, it offers seamless connectivity and efficient power management. The board’s compact size, ample memory, and onboard PCB antenna make it an attractive choice for various applications. Despite some limitations, the ESP32 NodeMCU Development Board provides a cost-effective solution with extensive documentation and community support. Explore the possibilities of this development board and unlock the potential of your IoT projects.

FAQs

1. Can I use the ESP32 NodeMCU Development Board for home automation projects?
   • Yes, the ESP32 NodeMCU Development Board is well-suited for home automation projects. It can act as a central control unit for various smart devices, providing convenience and energy efficiency.
2. Does the ESP32 NodeMCU Development Board support video streaming?
   • Yes, the development board supports video streaming applications. With its integrated camera support, it can capture, process, and transmit video data over the network.
3. Is the ESP32 NodeMCU Development Board suitable for industrial wireless control?
   • Absolutely. The development board’s robust wireless capabilities make it an ideal solution for industrial control applications, enabling remote monitoring, control, and automation.
4. Can I create a wearable electronic product using the ESP32 NodeMCU Development Board?
   • Yes, the compact size and low power consumption of the board make it suitable for wearable electronic products. It can serve as a central processing unit for wearable devices, facilitating sensor integration and interaction.
5. Where can I purchase the ESP32 NodeMCU Development Board?
   • You can get the ESP32 NodeMCU Development Board from Pakistan’s best online store, epro.pk. Visit their website to access the board and other related components.
