MAX485-RS-485/RS-422 Transceiver IC in Pakistan

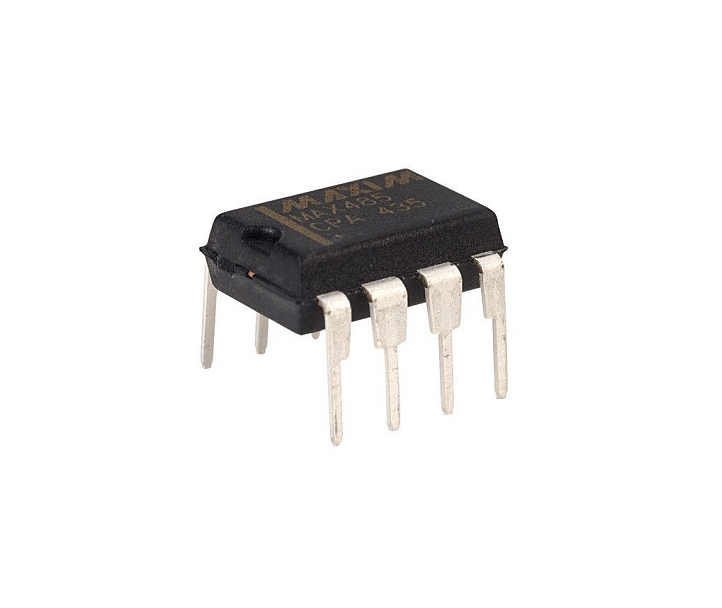

MAX485-RS-485/RS-422 Transceiver IC PDIP-8 Package

The MAX485 are low-power transceivers for RS-485 and RS422 communication. Each part contains one driver and one receiver. The driver slew rates of the MAX481, MAX485, MAX490, MAX491, and MAX1487 are not limited, allowing them to transmit up to 2.5Mbps. These transceivers draw between 120µA and 500µA of supply current when unloaded or fully loaded with disabled drivers. All parts operate from a single 5V supply. Drivers are short-circuited current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. Featured by Sharvi Electronics The receiver input has a fail-safe feature that guarantees a logic-high output if the input is an open circuit.

Features/Specs:

• Part Number: MAX485
• Product Type: RS-422/RS-485 Interface IC
• Product Series: MAX485
• Half/Full Duplex: Half
• Function: Transceiver
• Data Rate (Mbps): 2.5 Mbps
• Receiver/Driver Enable: Yes
• Number Of Receivers On Bus: 32
• Number of Drivers: 1 Driver
• Number of Receivers: 1 Receiver
• Mounting Type: Through Hole
• Pin Count: 8
• Package/Case: DIP-8
• Dimensions in: mm
• Length: 10mm
• Width: 8mm
• Height: 5mm
• Weight: 1gm

Applications:

• Industrial-Control Local Area Networks
• Level Translators
• Low-Power RS-422 Transceivers
• Low-Power RS-485 Transceivers
• Transceivers for EMI-Sensitive Applications

Package includes:

• 1 x MAX485-RS-485/RS-422 Transceiver IC PDIP-8 Package
