Product Details

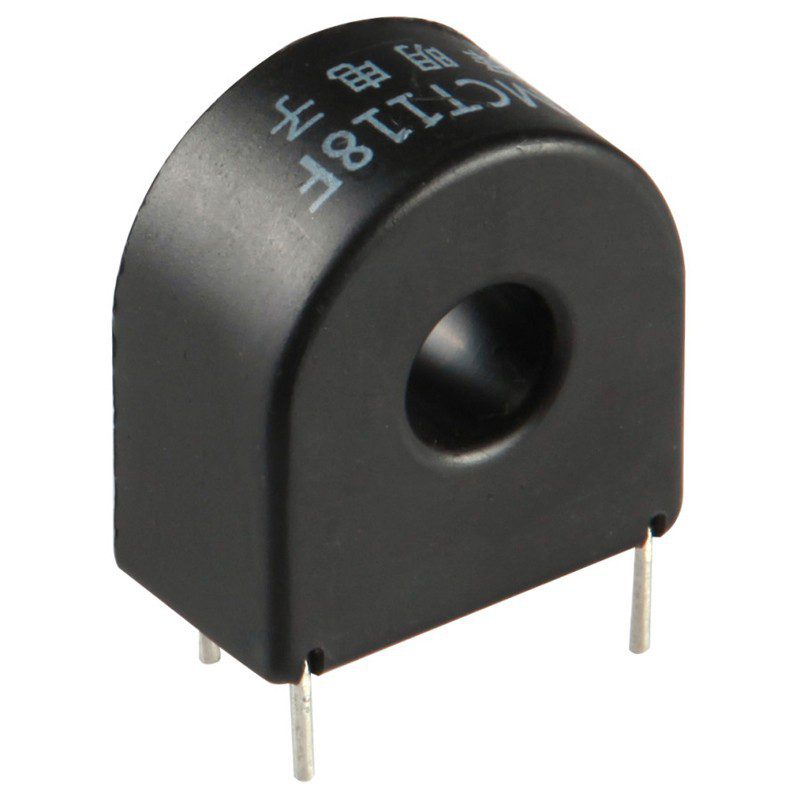

Cable Primary Current Sense Transformer
50/60Hz Current Transformers PCB mounting
Applications include, Sensing Overload Current, Ground fault detection, Metering andAnalog to Digital Circuits
Low Cost Current Sense Transformers
Input Current 30A
Turns Ratio 1000:1
Internal Diameter 11.4mm
Length 30.2mm
Width 14.3mm
Depth 30.2mm
Dimensions 30.2 x 14.3 x 30.2mm
Weight 35.5g
Mounting Type Through Hole
Isolation Voltage 4kV ac
Minimum Operating Frequency 50Hz
Maximum Temperature +120°C
Number of Phases 1
Maximum Operating Frequency 50Hz
Termination Type Pin
Minimum Temperature -40°C
Primary Current Rating 30A
Secondary DC Resistance 48Ω
