₨190

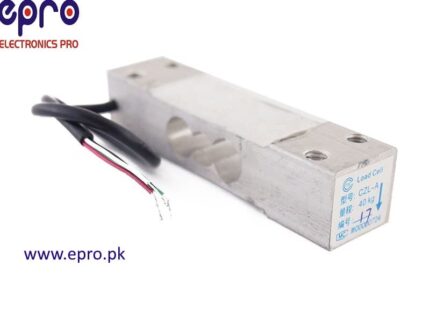

This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales (you know, the ones you use in January for your New Year’s resolutions, and then forget about a month later). This sensor can measure up to about 110 pounds. Check the video below for a simple explanation on how these work and how to use them.
Capacity: 40-50kg
Comprehensive Error: 0.05mv/v
Output Sensitivity: 1.0±0.1mv/v
Nonlinearity: 0.03%FS
Repeatability: 0.03%FS
Hysteresis: 0.03%FS
Creep: 0.03 (3min)%FS
Zero Drift: 0.03(1min)%FS
Temp. Effect on Zero: 10℃ 1Zero %FS/
Temp. Effect on Output: 0.05%FS/10℃
Zero Output: ±0.1mV/V
Input Resistance: 1000±20Ω
Output Resistance: 1000±20Ω
Insulation Resistance: ≥5000MΩ
Excitation Voltage: ≤10V
Operation Temp. Range: 0–+50 ℃
Overload Capacity: 150%FS
