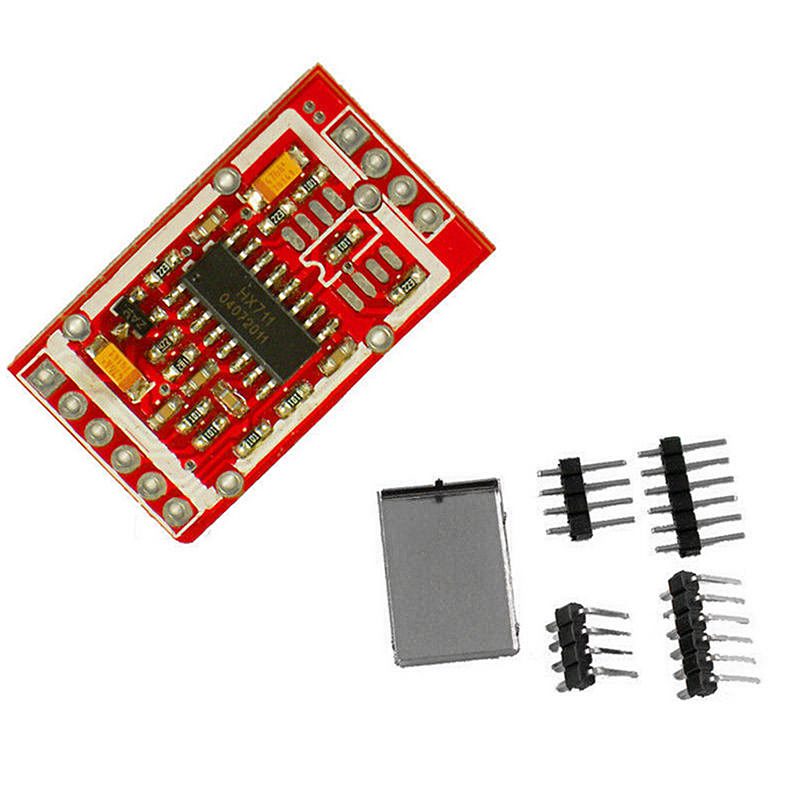

Weighing Sensor AD Module Dual channel 24bits A-D-Conversion-HX711-Shield

SKU: N/A

24bits HX711 Load Cell Amplifier AD Module with Metal Shied

220.00

Description

Product Description

  • Two selectable differential input channels
  • On-chip active low noise PGA with selectable gain of 32, 64 and 128
  • On-chip power supply regulator for load-cell and ADC analog power supply
  • On-chip oscillator requiring no external component with optional external crystal
  • On-chip power-on-reset
  • Selectable 10SPS or 80SPS output data rate
  • Simultaneous 50 and 60Hz supply rejection
  • Current consumption including on-chip analog power supply regulator: Normal operation < 1.5mA, power down < 1uA
  • Operating supply voltage range: 2.6 ~ 5.5V
