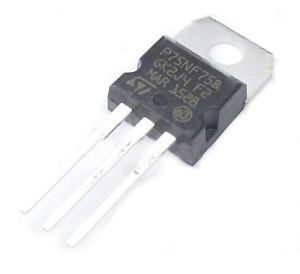

75NF75 P75NF75 P75N75 STP75NF75 Transistor in Pakistan

140

Add 5,000 to cart and get free shipping!

Purchase this product now and earn 140 Points!

Description

Specifications:

Attribute Value
Type of channel N
Continuous maximum drain current 80 A
Maximum drain source voltage 75 V
Maximum drain source resistance 11 mΩ
Maximum gate threshold voltage 4V
Minimum gate threshold voltage 2V
Maximum gate source voltage -20 V, +20 V
Package type TO-220
Type of assembly On hole
Pin number 3
Transistor configuration Single
Channel mode Enhancement
Category Power MOSFET
Maximum power dissipation 300 W
Typical switch-off delay 66 ns
Typical input capacity @ Vds 3700 pF at 25 V
Typical gate charge @ Vgs 117 nC to 10 V
Minimum operating temperature -55 ° C
Typical ignition delay 25 ns
Transistor material Yes
Number of items per chip 1
dimensions 10.4 x 4.6 x 9.15mm
Length 10.4mm
Maximum operating temperature +175 ° C
Series STripFET II
Height 9.15mm
Width 4.6mm
