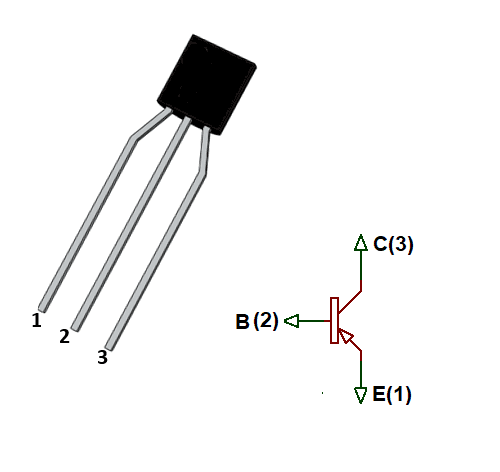

A1015 2SA1015 Transistor PNP in Pakistan

  • Package of 25 E-Projects A1015 Transistors
  • PNP
  • TO-92
  • 200MA
  • Lead free / RoHS Compliant

5.00

Description

  • Type: p-n-p
  • Power Dissipation: 0.4watts
  • High voltage and High current: Vceo = 50v and Ic = 150mA
  • Low Noise: 1dB
  • Case Material: molded plastic
  • Collector power dissipation: 400mW
  • DC current gain: 400
  • Collector Emitter and Collector Base breakdown voltage: 50Vdc
  • Base Emitter Saturation Voltage: 1.1Vdc
  • Collector Emitter Saturation Voltage: 0.3Vdc
  • Base Emitter voltage: 1.45Vdc
  • Complementary to 2SC1815
  • Operating Temperature and Storage Temperature: -55℃ to +150℃
