Veroboard is a brand of stripboard, a pre-formed circuit board material of copper strips on an insulating bonded paper board which was originated and developed in the early 1260s by the Electronics Department of Vero Precision Engineering Ltd. Get all types of Veroboard, sensors, modules, drone frames, motors and much more from Pakistan’s best online store epro.pk.

Difference between Veroboard and Breadboard:

Vero board is a simple PCB with lots of copper dots with small holes available. One can build circuits by soldering components on the Vero boards. Routing is done by wires in the direction desired by the layout.

The breadboard is the board with a large number of spring terminals arranged in a fashion to ease the building of circuits just by inserting the single strand wires in the holes. There is no need for any solder there. This type of wiring board may be used for initial electronic circuit development to construct prototypes for bench testing or in the production of complete electronic units in small quantities.

As with other stripboards, in using Veroboard, components are suitably positioned and soldered to the conductors to form the required circuit. breaks can be made in the tracks, usually around holes, to divide the strips into the multiple electrical nodes enabling increased circuit complexity.

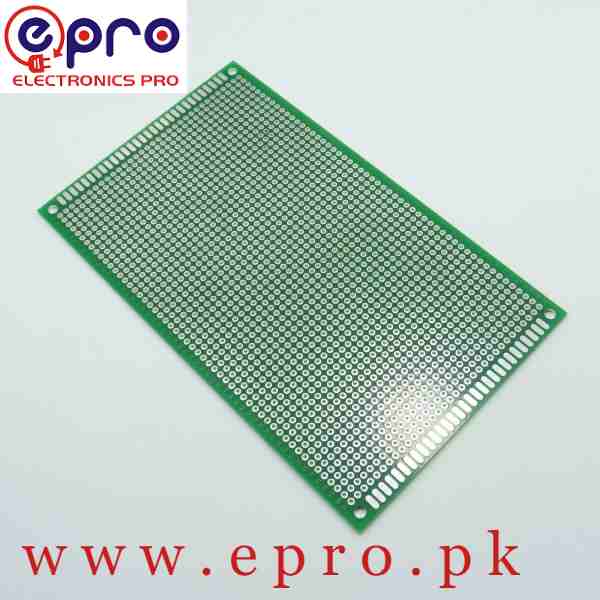

Specification of Double-Side Universal PCB Veroboard Doted FR4 (7x9cm):

• Item Name: Universal Double-Sided PCB Board;
• Hole Pitch : 0.1″ (2.54mm);
• Each Hole Diameter: 1mm;
• Thickness: 1.6mm;
• Materials: FR-4 PCB, Tin Plated, Glass Fiber;
• Size:(Dimension W x L (mm) Dimension W x L (inch) Hole (column x row): 90mm x 150mm 3.5″ x 5.9″
• Package: 1 x Double-Sided PCB Board
