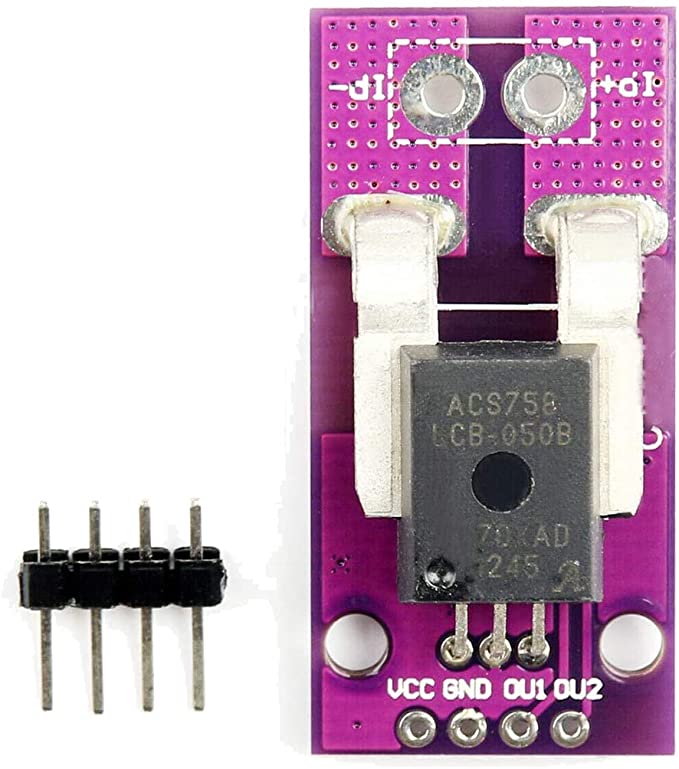

ACS758 Current Sensor ACS758LCB 100B PFF-T Module

1- Industry-leading noise performance through proprietary

2- amplifier and filter design techniques

3- Integrated shield greatly reduces capacitive coupling from

4- current conductor to die due to high dV/dt signals, and

5- prevents offset drift in high-side, high voltage applications

6- Total output error improvement through gain and offset

7- trim over temperature

8- Small package size, with easy mounting capability

9- Monolithic Hall IC for high reliability

10-Ultra-low power loss: 100 μΩ internal conductor resistance

11- Galvanic isolation allows use in economical, high-side

2- current sensing in high voltage systems

13- 3.0 to 5.5 V, single supply operation

14- 120 kHz typical bandwidth

15- 3 μs output rise time in response to step input current

16- Output voltage proportional to AC or DC currents

17- Factory-trimmed for accuracy

18- Extremely stable output offset voltage

19- Nearly zero magnetic hysteresis
