₨13,500
The ARM Cortex-M4F Based MCU TM4C123G LaunchPad Evaluation Kit (EK-TM4C123GXL) offers these features:

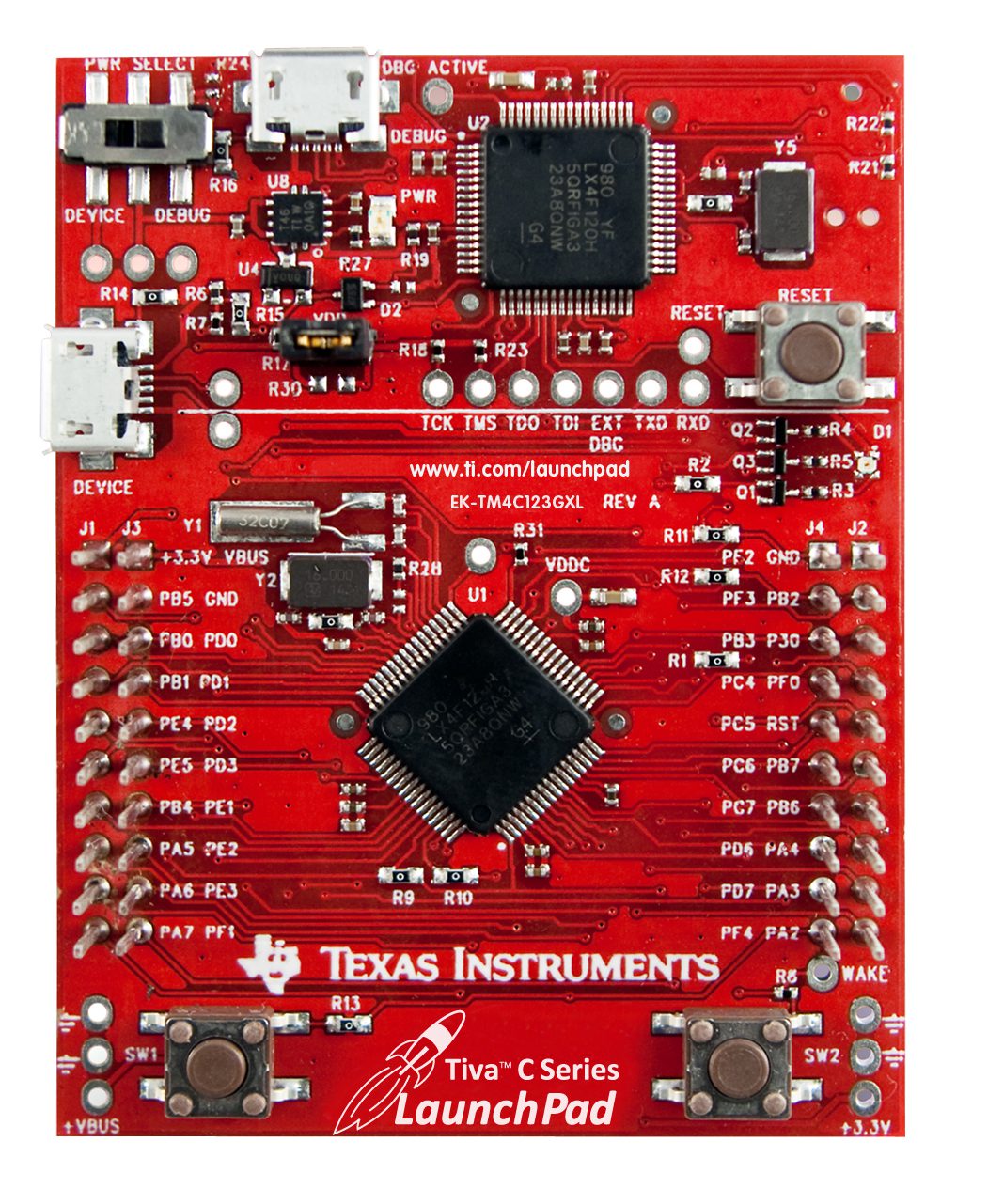

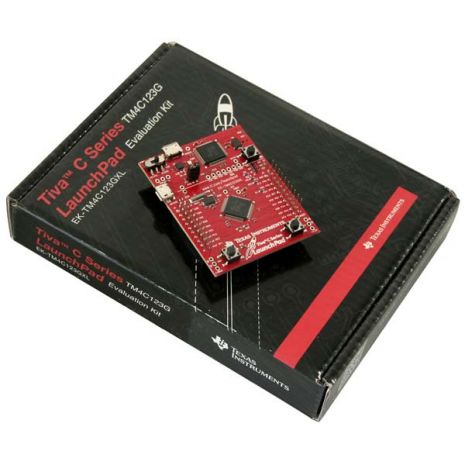

The TM4C123G Tiva LaunchPad Evaluation Kit is a low-cost evaluation platform for ARM Cortex-M4F based microcontrollers from Texas Instruments. The design of the TM4C123G LaunchPad highlights the TM4C123GH6PM microcontroller with a USB 2.0 device interface and hibernation module.
The EK-TM4C123GXL also features programmable user buttons and an RGB LED for custom applications. The stackable headers of the TM4C123G LaunchPad BoosterPack™ XL Interface make it easy and simple to expand the functionality of the TM4C123G LaunchPad when interfacing to other peripherals with Texas Instruments MCU BoosterPack.
Texas Instruments EK-LM4F120XL Tiva™ LM4F120 LaunchPad Evaluation Board is a low-cost evaluation platform for TI ARM® Cortex™-M4F-based microcontrollers (MCUs). The design of the Tiva LaunchPad highlights the LM4F120H5QR MCU with a USB 2.0 device interface and hibernation module. TI EK-LM4F120XL Evaluation Board also features programmable user buttons and an RGB LED for custom applications.
Tiva EK-LM4F120XL Features
Tiva LM4F120H5QR microcontroller
USB Micro-B connector for USB Device
RGB user LED
2 user switches (application/wake)
Available I/O brought out to headers on a 0.1″ grid
On-board Tiva In-Circuit Debug Interface (ICDI)
Switch-selectable power sources
ICDI
USB Device
Reset switch
Preloaded RGB quickstart application
Supported by software including the USB library and the peripheral driver library
Tiva LM4F120 LaunchPad BoosterPack XL Interface which features stackable headers to expand
the capabilities of the Tiva® LaunchPad development platform Tiva Board
The ARM Cortex-M4F Based MCU TM4C123G LaunchPad Evaluation Kit (EK-TM4C123GXL) offers these features:
