MPU6050 Analog Gyroscope Sensor 3 Axis in Pakistan


MPU-6050 module (three-axis gyroscope + three-axis accelerometer)


80 in stock

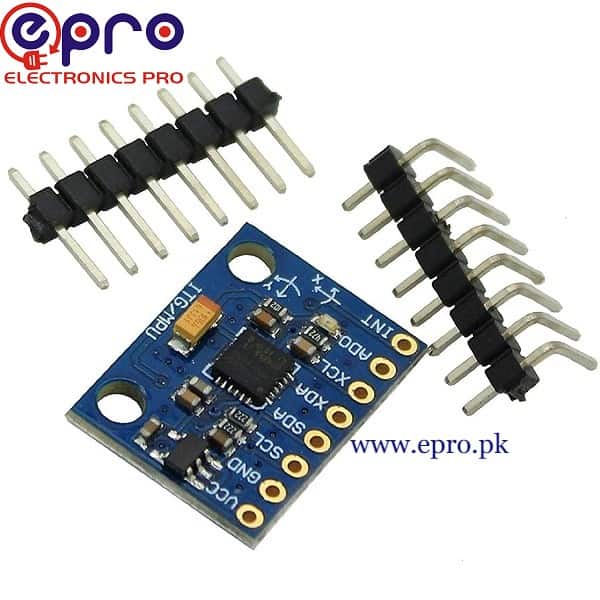

MPU6050 Analog Gyroscope Sensor 3 Axis GY-521 in Pakistan


MPU6050 Analog Gyroscope Sensor is a little module that is used for motion processing. It is made by combining 3 axis gyroscope and 3 axis accelerometer. It consists of an accelerometer and gyroscope on the same silicon die together with an onboard motion processor. It is capable of 9 axis complex motion processing. MPU Gyroscope can creep up on discrete parts.

It provides a digital output of 9 axes. Quaternion Euler Angle, or raw data format. Its power supply voltages are 3 to 5 Volts. It has a selectable solder jumper on CLK, FSYNC, and AD0. The gyroscope has sensitivity up to 131 LSBs/DPS. Its full-scale range is ±250, ±500, ±1000, and ±2000DPS. It has Digital Motion Processing. it has timing synchronization and gesture detection.


Features of MPU6050 Analog Gyroscope Sensor:



It provides I2C Digital-output of 6 or 9-axis Motion Fusion data in rotation matrix, quaternion, Euler Angle, or raw data format.

The power supply value is 3-5v (internal low dropout regulator).

it consists of Selectable Solder Jumpers on CLK, FSYNC, and AD0.

Tri-Axis angular rate sensor (gyro) with a sensitivity of up to 131 LSBs/DPS.

It has a full-scale range of ±250, ±500, ±1000, and ±2000dps

Tri-Axis accelerometer consists of a programmable full-scale range of ±2g, ±4g, ±8g, and ±16g

Digital Motion Processing (DMP™) engine offloads complex MotionFusion, sensor timing synchronization, and gesture detection
The company has embedded algorithms for run-time bias and compass calibration.

No user intervention required Digital-output temperature sensor
