Description of SPO2 Sensor MAX30100 Pulse Oximeter Heart Rate Sensor Module

This MAX30100 Pulse Oximeter Heart Rate Sensor Module is an integrated pulse oximetry. it is also a heart rate monitor sensor solution. this Heart rate sensor module combines two LEDs. these LEDs are photodetector and optimized optics. it also contains low-noise analog signal processing to detect pulse oximetry and heart-rate signals. Get all types of Biomedical sensors at epro.pk.

SPO2 Sensor MAX30100 Pulse Heart Rate Sensor Module Specifications:

• 1.8V – 5.5V is its operating voltages.
• I2C is Its interface type.
• 18.8 x 14.4 3 mm is the dimensions of the Heart sensor module.
• Heart Sensor weight is 1.2g.
• The heart sensor module brand is MAX30100.
• The Digital is its Output type.
• the working principle of this sensor is Biosensor.
• this is a pressure-sensitive and force-sensitive sensor.
•  The polymer is its material texture.

Pinout of Module MAX30100:

• This sensor contains a Vin pin which is a power input of 1.8V – 5.5V.
• It also contains an SCL pin which is the I2C Serial clock.
• It contains an SDA pin that did I2C Serial Data.
• This sensor also contains an INT pin which used as MAX30100 interrupt.
• It has an IRD pin that works IR LED cathode and LED Driver connection point. Leave floating in circuits.
• It has an RD pin. This has Red LED cathode and LED driver connection point. It leaves floating in the circuit.
• This sensor has a GND pin. This has 0V or Reference voltage.

Applications of MAX30100:

• This sensor is used in wearable devices.
• This heart sensor is used in fitness assistant devices.
• This Heart sensor module is also used in medical monitoring devices

Package Included:

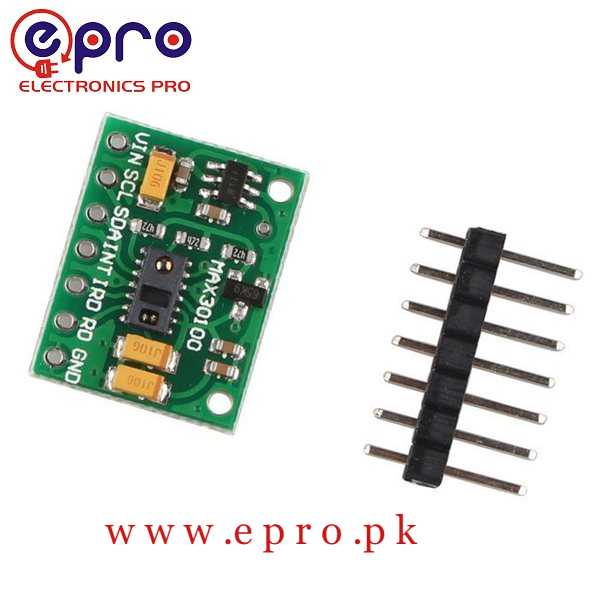

One Piece of Pulse Oximeter and Heart Rate Sensor Module for Wearable Health.

One Piece of 7 pins male-male header.
