Universal Charger with Power Supply LIITOKALA – LII-600

Universal Charger with Power Supply LIITOKALA – LII-600

Liitokala Lii-600 is an intelligent touch-controlled charger that can be used to charge, discharge, test and restore Ni-Cd, Ni-MH and Li-Ion batteries. The device is able to analyze the internal resistance of the battery and automatically set the optimal charge parameters. It is possible to manually set the charge current up to 3 A per channel.

The charger has four independent compartments (slots) for charging and discharging Ni-Cd, Ni-Mh and Li-Ion batteries. The device is able to optimize and test the maximum battery capacity. The charger has the function of analyzing the internal resistance of the battery and automatically setting the optimal charge parameters in Auto mode. The device has 6 touch control buttons: MODE (MODE), Current (CURRENT) and control buttons for channels 1 – 4.

The charger can simultaneously charge batteries of various types, sizes and capacities. There are thermal sensors that protect the charger and batteries from overheating.

Peculiarities:

• Four completely independent channels for battery charging
• Support for Li-ion 4.2V (IMR/INR/ICR), Ni-MH, Ni-Cd batteries
• Charge Li-ion batteries up to 75mm long (including those with a protection board)
• Low capacity battery support
• Charging method for Li-ion batteries: charging with constant current (CC) and constant voltage (CV), this charging method saves battery life and does not reduce their capacity over time
• Automatic detection of the end of the charge by voltage drop (-dV) for Ni-Cd / Ni-Mh batteries
• Automatic and manual selection of operating mode
• Setting the optimal charge current in automatic mode based on the analysis of the internal resistance of the batteries
• Fast charging of Li-ion / IMR batteries (up to 3A per channel)
• Adjustable charge current:
  • Li-ion : 0.25 A / 0.5 A / 1.0 A / 1.5 A / 2.0 A / 2.5 A / 3.0 A
  • Ni-Cd / Ni-Mh: 0.25 A / 0.5 A / 1.0 A
• Adjustable discharge current: 0.25A / 0.5A / 0.75A
• DISCHARGE mode to eliminate the “memory effect” and measure the remaining capacity
• TEST mode for real capacitance measurement
• RECOVERY/REPAIR mode for raising the voltage of over-discharged Li-ion batteries and restoring the capacity of Ni-Cd / Ni-Mh batteries
• Determining the internal resistance of batteries
• Activation of protected Li-ion batteries
• Switchable backlight display
• LCD display of battery type, charge time, charge current, capacity, voltage, internal resistance, charge percentage and battery temperature
• Overheating protection, automatic battery temperature control
• Reverse polarity protection
• Short circuit protection
• Overcharge protection, the device automatically stops the charging process when the battery is fully charged
• Power Supply – 12V/5A

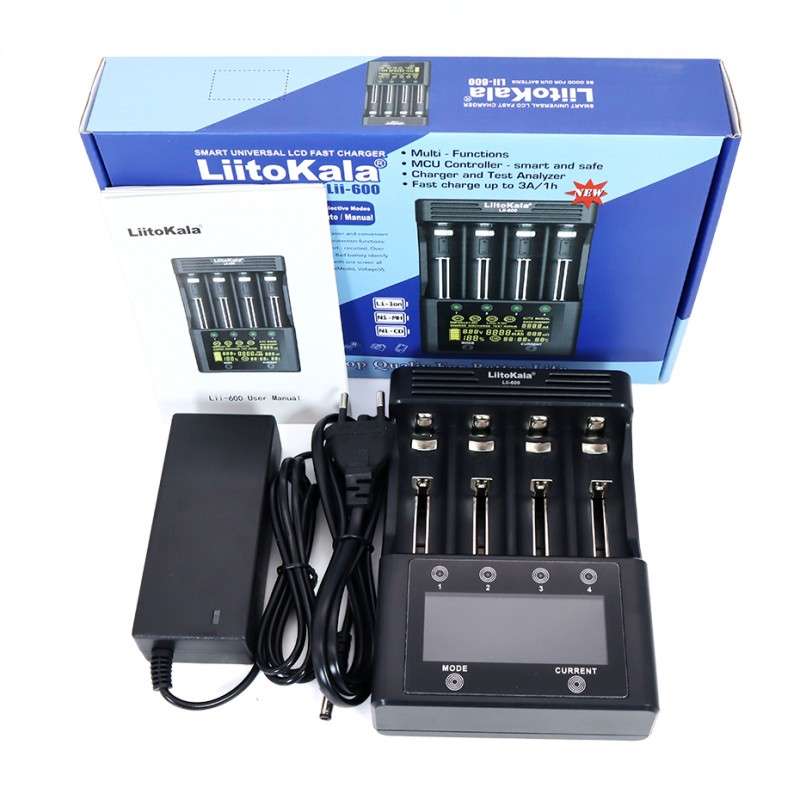

Equipment:

• 1 x Liitokala Lii-600
• 1 x Network adapter
• Instruction
