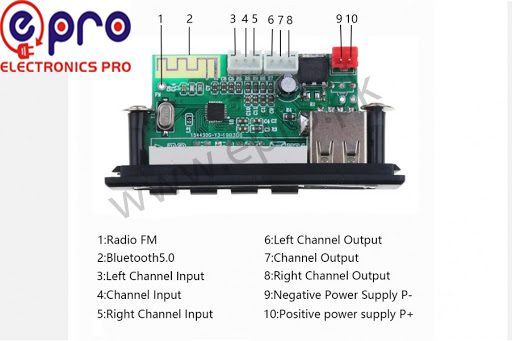

he new MP3 Bluetooth FM USB TF module, with a miniature panel, is designed to play audio files from TF cards, USB drives or via Bluetooth.
This module can be integrated into the car or home audio system, with it you can play audio files of various formats (MP3, WAV, WMA) via Bluetooth, and the module can also act as an FM receiver. Auto MP3 Bluetooth FM amplifier module USB SD is equipped with a 1.5 “LCD display that displays the mode in which the device is currently working, the number of the track being played or the frequency of the FM station.
The module is controlled using the remote control that comes with the kit, as well as using the buttons on the front of the device.
The module supports the following modes:
• USB – playing files from USB drives);
• TF – playing files from TF cards);
• Bluetooth – play audio files via Bluetooth technology);
• FM – listening to FM (stations).
Specification
Installation pitch: 92 mm wide
Installation hole: 83 x 20 x 38 mm
Overall dimensions: 107*25*38mm/ 4.21*0.98*1.5 ”
Input voltage:7-12V
1X Wireless Bluetooth MP3 TF Decoder Board Audio Amplifier Module MP3 With Remote
