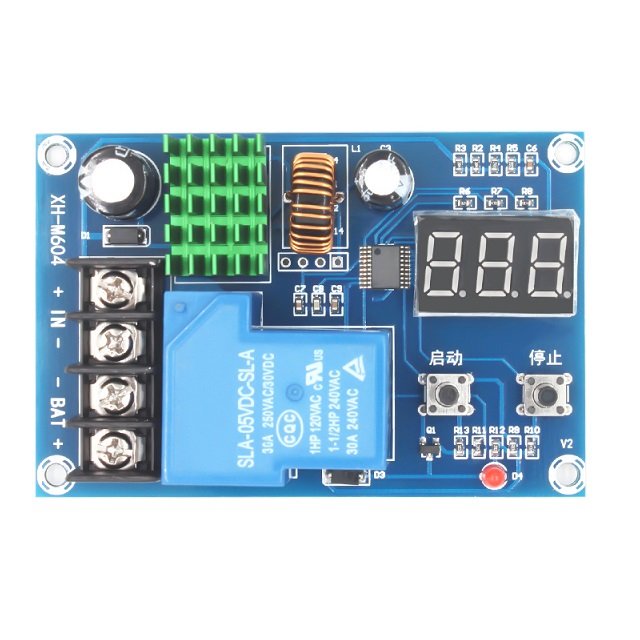

XH-M604 Charge Controller Protection Module With LED Display

XH-M604 Charge Controller Protection Module With LED Display Price in Pakistan

•  Input Voltage:DC 6-60V
• Current: 30A
• Display Accuracy:0.1V
• Control Accuracy:0.1V
• Output Type:direct output
• Voltage Tolerance:±0.1V
• Apply For:6-60V MAX 80V battery
• Dimension:81*54*18mm

Setting Up Charge Controller Module

• Set the Start Voltage
  • Normal display voltage state, press to a starting voltage button ,to display the start charging voltage. long Press the start button, digital flashes, by start and stop button, set the start charging voltage value Charge Controller Protection.
• Set Stop Voltage
  • Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage. long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value Charge Controller Protection.
• Setting Error
  • Energized state while holding down the start / stop button, digital display 888, which is the factory setting Charge Controller Protection.

Package Includes

• 1 x XH-M604 Charge Controller ProtectionModule With LED Display
