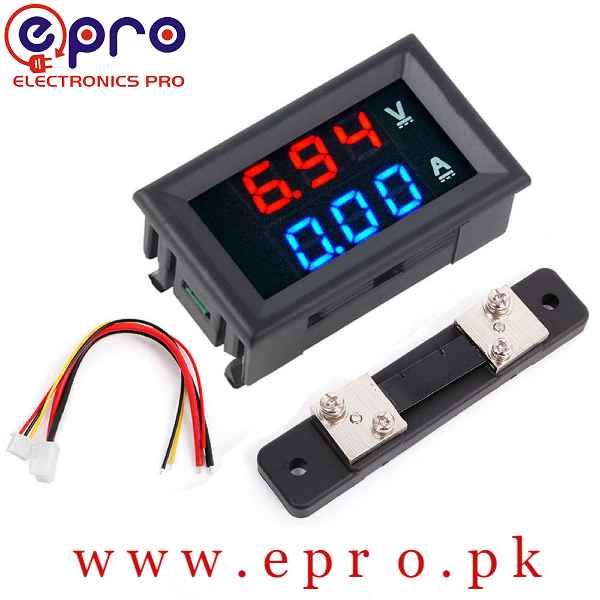

0-100V 50A Red Blue Digital Voltmeter Ammeter 2in1 DC Volt Amp Meter With Shunt in pakistan

SKU: N/A

1,200.00

Description

Product Description

100% brand new and high quality

Operating voltage:DC 4 ~ 30V

Measure voltage: DC 0 ~ 100V

Minimum resolution(V): 0.1V

Measure current :50A (require external shunt)

Minimum resolution(A): 0.1A

Operating current: <20mA

Display: three 0.28″ LED digital tube

Display color: Red and Blue (two-color display)

Refresh rate: about 300mS / times

Measure accuracy: 1% (± 1 digit)

Operating temperature: -10 to 65° c

Operating Humidity: 10 to 80% (non-condensing)

Working pressure: 80 to 106 kPa

Applications:Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement

Wiring: Black line (thin): vacant or buck circuit (module) negative Red line (thin): power supply+ Black line (thick): COM, common measuring Red line (thick): PW+, measuring terminal voltage input positive Yellow line (thick): IN+, current input+ (Please refer to the wiring diagrams for more details)

Notice: The voltage between the thin red and thin black lines must be within DC 4-30V The ammeter can only be connected to the negative of the device under test Exceeds 5A, long-term full load working continuously, it is recommended that the measurement side of the leads are directly soldered to the socket When the black thin line vacant, it is better to use insulating tape around the exposed part of the wire, to prevent short circuits If just be used as a voltmeter, it is recommended that the yellow line and the black line were connected together, to prevent the ammeter digital flashing It is unsuitable to use this meter to test current less than 10A . You can buy DC voltmeter ammeter 0-10A here
