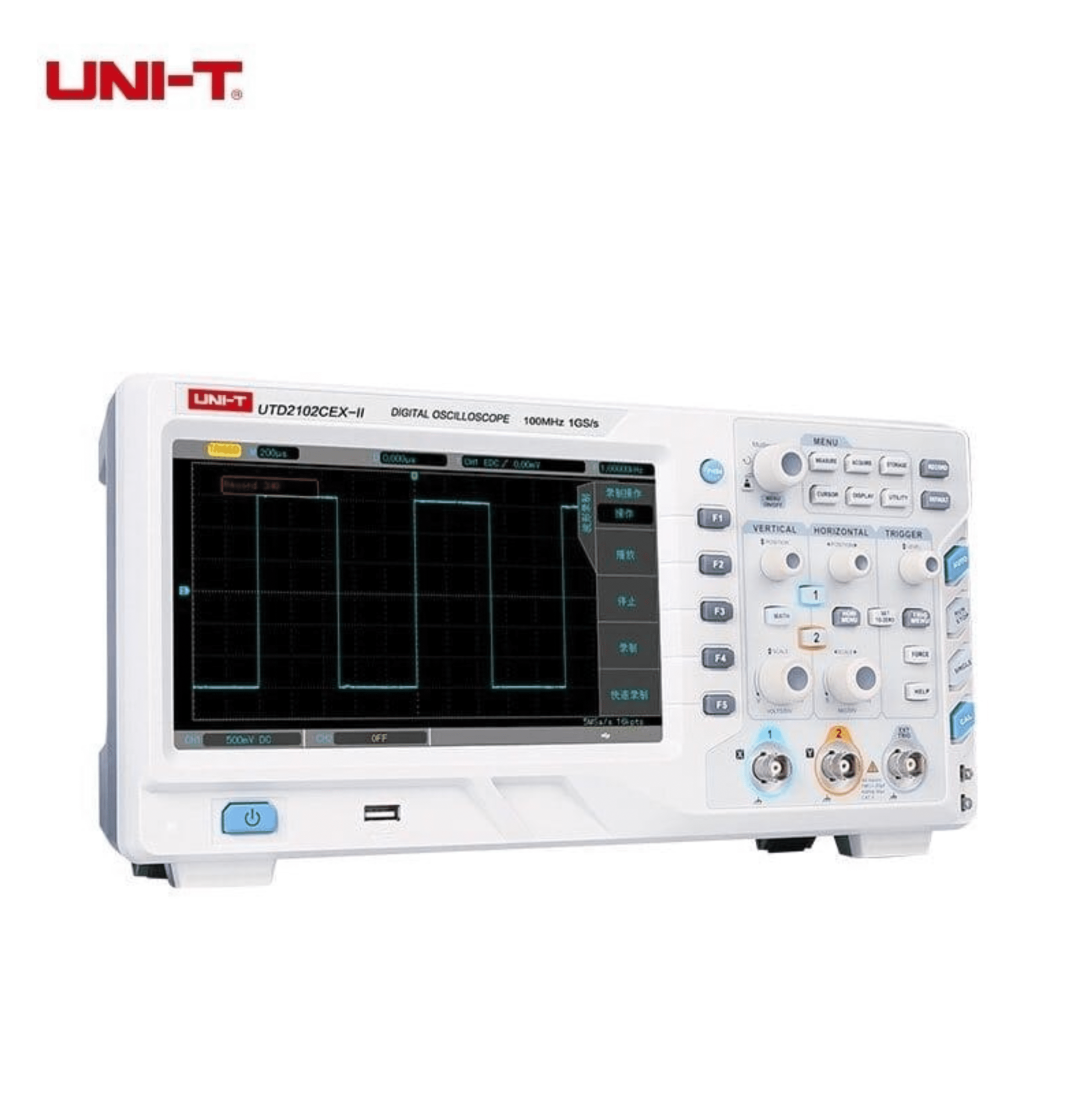

UTD2102CEX Digital Storage Oscilloscope UNI-T in Pakistan

SKU: N/A

UTD2102CEX Digital Storage Oscilloscope UNI-T

34,000.00

Out of stock

Description

Features & Benefits:

1. 100MHz bandwidth, 1GSa/s real-time sampling rate
2. 2 channels
3. 25kpts memory depth
4. 20,000wfms/s waveform acquisition rate
5. 2ns/div~50s/div time-base
6. Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope and Video
7. Calibration signal output: 10Hz, 100Hz, 1kHz (default), 10kHz and 100kHz
8. Input calibration signal only by pressing a button
9. 10Mpts waveform recording
10. 8-inch TFT LCD, WVGA (800×480)
11. USB OTG and Pass/Fail interfaces



SpecificationsUTD2102CEX-II
Channels2
Bandwidth100MHz
Sample rate1GS/s (single channel), 500MS/s (dual channel)
Rise time≤3.5ns
Memory depth25kpts
Waveform acquisition rate≥20,000wfms/s
Vertical sensitivity (V/div)1mV/div~20V/div (1MΩ)
Time-base range (s/div)2ns/div~50s/div
StorageSetup, Waveform, Bitmap
Trigger modeEdge, Pulse Width, Runt, Over amplitude, Video, Slope
Trigger frequency6 bits
Trigger typeAuto, normal, single
Pluse Width range100ns~10s
Signal mode and Line/FieldSupports standard NTSC and PAL signal mode, line range is 1~525 (NTSC) and 1~625 (PAL)
Auto measurementMax, Min, Peak-Peak, Amplitude, Top, Bottom, Cycle Average, Average, Crms, RMS, Area, Cycle area, Overshoot, Preshoot, RPRE, FPRE, Rise Time, Fall Time, Frequency, Period, Pulse Width, +Width, -Width, Burst Width, +Duty, -Duty, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, 34 measuring parameters in total
Storage waveform20 internal settings/waveform, 200 settings/waveform in U disc, deep storage CSV in U disc
InterfaceUSB OTG, Pass/Fail
General Characteristics
Power100~240VACrms, 50/60Hz
Display8-inch TFT LCD, 800×RGB×480
Product colorWhite and gray
Product net weight3.35kg
Product size (W×H×D)336mm×164mm×108mm
Standard accessoryPower cord, USB cable, 2 sets of passive probes (100MHz), PC software CD (with manual and application software inside)

Package Details:

Probe×2 (1×,10× switchable)
Power Cord
USB Cable
PC Software CD
LA Module  (UT-M09)
