Let’s Know About ATmega328P

Atmega328P-PU consists of Dual in Line Package and it is pre-loaded with Optiboot boot loader. This IC will allow us to use code in your custom embedded projects without using an actual board. The chip will need an external 16Mhz crystal or resonator. It will need a 5V power supply. It has serial connections. ATMega328 is an 8-bit microprocessor. It is 28 pin Dual in Line Package. It has a double flash space. It has 32K of program space. It has 23 input-output lines. And 6 of which are channels for the 10 bits ADC. It runs on 20Mhz with external crystal. Its operating voltages are 1.8 to 5 Volts.

Specs of Atmega:

Number of Pins are 28
Architecture is 8-bit
Operating. Temperature is -40 ~ 85°C
Series is ATMega
4.5V-5.5V is its operating range
Crystal used is Up to 20MHz

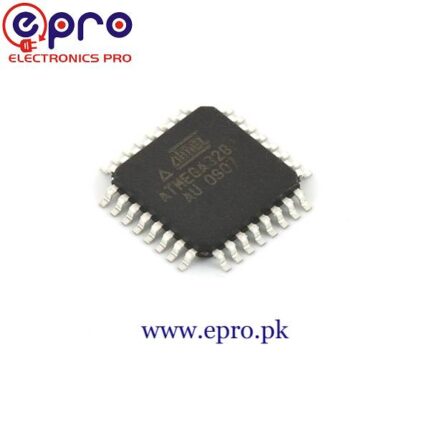

it is the Part of  ATMEGA328P-AU
it has 32kB Flash program memory
it has 1kB EEPROM
it has 2kB Internal SRAM
it has Two 8-bit Timer/Counters
it has one 16-bit Timer/Counter
it has RTC with separate oscillator
it has 6 PWM Channels
it has 8 Channel 10-bit ADC
it has Serial USART
it also has the Master/Slave SPI interface
it has a 2-wire (I2C) interface
it has a Watchdog timer
it consists of 23 IO lines
Data retention is about 20 years at 85oC/ 100 years at 25oC

Applications of Atmega328P-PU:

1 it is used in the Burglar alarm system
2 it is used in Smoke and fire alarm system
3 it is used as Garage door controllers
4 we can use it as Car door controllers
5 it is used as a Car alarm system
6 it is used in the Security system
7 it is used in Cordless telephones
8 it is also used in Other remote control systems

Package Contains:

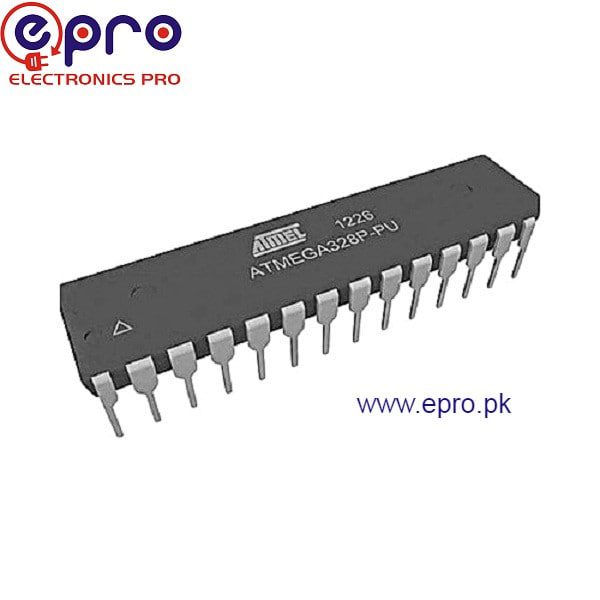

One  ATMEL MICROCONTROLLER ATMEGA328P-PU (DIP-28)
