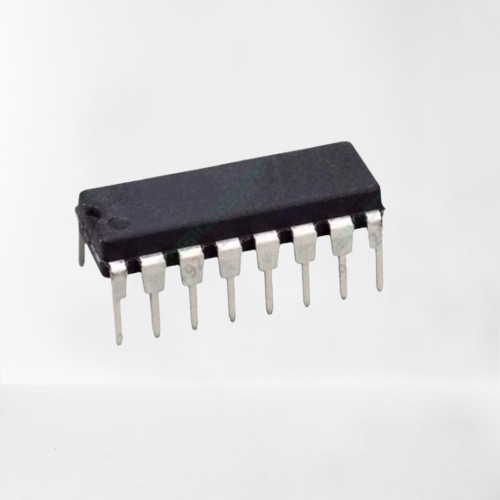

CD4033 CMOS Decade Counter Divider IC

CD4033 CMOS Decade Counter Divider IC

The CD4033 CMOS Decade Counter Divider IC is a versatile, high-performance integrated circuit designed for use in a wide range of applications that require frequency division, counting, and timing functionality. Built with CMOS (Complementary Metal-Oxide-Semiconductor) technology, this IC offers low power consumption, reliability, and efficient operation.

Key Features:

• Decade Counting: This IC provides a 10-stage binary counter that counts from 0 to 9, making it ideal for frequency division by 10 in digital circuits.
• CMOS Technology: Ensures low power consumption, high noise immunity, and fast switching speeds, making it suitable for a variety of low-power electronic systems.
• Output Options: The CD4033 features multiple output stages, allowing users to access different counts for interfacing with other digital systems.
• Wide Voltage Range: Supports a broad operating voltage range, typically between 3V and 15V, for compatibility with various logic levels and power supplies.
• High Reliability: With its robust CMOS design, the CD4033 delivers high durability and consistent performance across a range of environmental conditions.
• Ease of Integration: This IC is designed for easy integration into digital clocks, timers, frequency counters, and other applications requiring accurate counting or time division.

Applications:

• Frequency Division: Divides high-frequency signals into lower frequencies for use in timing circuits, clock generation, or pulse width modulation.
• Timing Circuits: Ideal for use in digital timers, clock counters, and sequential timing operations.
• Signal Processing: Utilized in digital systems that require accurate counting and division of input signals.

Package Types:

The CD4033 is available in standard package options including Dual in-line Package (DIP) and Surface Mount (SMD), ensuring flexibility for various board designs and assembly processes.

Whether you are working on a hobbyist project or designing advanced digital systems, the CD4033 CMOS Decade Counter Divider IC offers reliable and efficient counting and division capabilities for your electronic applications.
