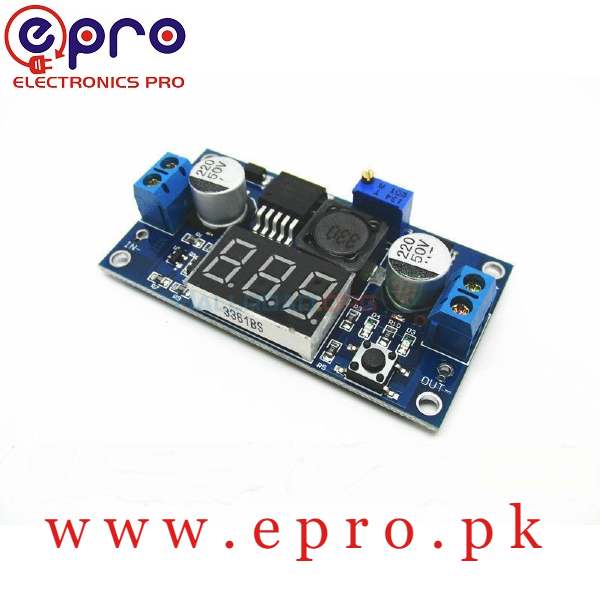

DC-DC Step-Down Buck Converter with 7 Segment Display LM2596

This particular DC-DC Buck Converter with 7 Segment Display LM2596 shows the current input and output voltages. The LM2596 step-down switching regulator is capable of current up to 3A, with an adjustable output voltage of 1.25-30V via the trim pot. Get all types of sensors, modules, buck converters, drone frames, and much more from Pakistan’s best online store epro.pk.

Specifications of DC to DC Step Down Buck Converter with Seven Segment Display:

• its input voltage range is 4 to 40V DC.
• its output voltage range is 1.25 to 37V DC.
• its output voltages are adjustable.
• its output current value is 2A.
• its voltmeter range is 0 to 40V. but there is a 0.1V error.
• it has input reverse polarity protection.
• it contains a built-in output short circuit protection function.
• it has a built-in thermal shutdown function.
• its size is 6.1 x 3.4 x 12 cm.
• its weight is 22gm.
• Press the right button to let the display show the input or output voltage.
• when the right Output led light On, it shows the output. and left IN LED shows the input.
• it has an adjustable function.
• its model is an LM2596 buck converter with a voltmeter.
• its ripple frequency is about 150KHz.
• its ripple peak is about 100mV.
• its display color is Red.
• The voltage meter error is +-0.1V.
• IN+ is for input positive.
• IN- is for input negative.
• OUT+ is Output positive.
• OUT- is for output negative.
• key switch input and output voltages.
• its green light indicates that it measuring the output voltage.
• its red light indicates the input voltage.

Package Included:

One Piece of DC-DC Step-Down Buck Converter with 7 Segment Display LM2596
