Mini L298N Motor Driver Info

Ideal for motorized drive modules, battery-powered smart cars, toy cars, and robots. The supply voltage can be 2V ~ 10V, two DC motors or 4-wire 2-phase stepper motors can be operated, forward or reverse can be reached, and it is possible to set the rotation speed. Each can provide 1.5A continuous current, peak current up to 2.5A, thermal protection, and can be automatically restored.

Product features:

• Built-in low-circuit-resistance MOS switch operation, minimal heat, coolant-free, small size, low power consumption, ideal for pile-running applications.
• Small size, lightweight, zero wait current is the ideal choice for your car model.

Product parameters:

• The dual H-bridge motor drive can operate two DC motors or a four-wire two-phase step motor.
• The module supply voltage is 2V-10V.
• The signal input voltage is 1.8-7V.
• Single operation current 1.5A, peak current 2.5A, low standby current (less than 0.1uA).
• The built-in common-mode transmission will not malfunction when the input pin slide is released.
• Internal thermal protection circuit with hysteresis effect (TSD), without worrying about engine shutdown.

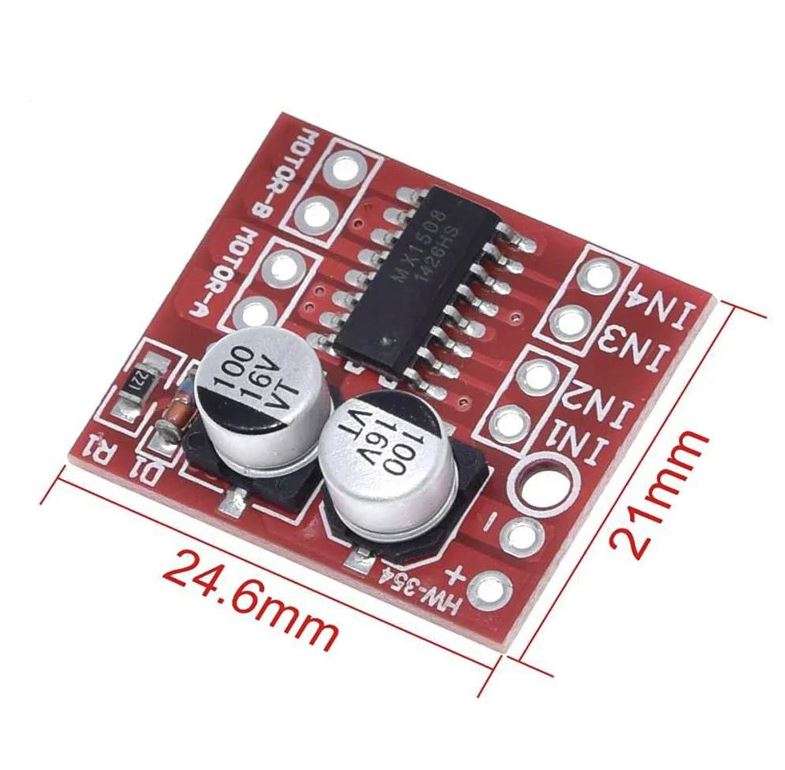

• Product Size: 24.7 * 21 * 5mm (length, width, height), very small size.
• Mounting hole diameter: 2 mm.
