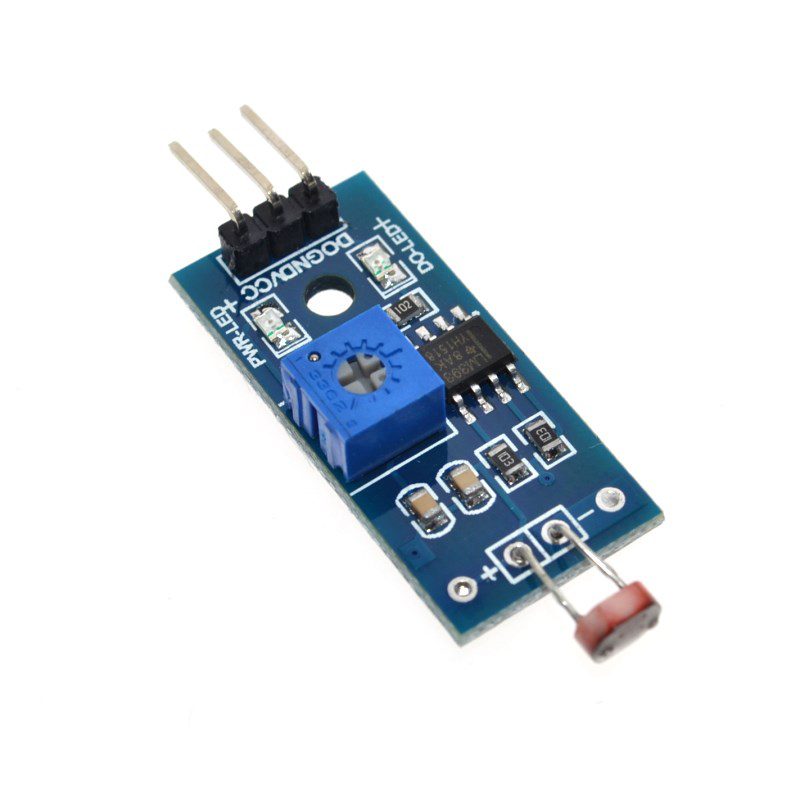

1 photosensitive resistance module’s most sensitive to ambient light, commonly used to detect environment around the
brightness of the light, or MCU trigger relay module, etc.;
2 module in the environment light intensity than set threshold, output high level DO end, when the environment light
intensity more than set threshold, the DO output low level;
3 the DO output can be directly connected to microcontroller, through single chip microcomputer to detect the high and low
level, thus to detect the environment light intensity change;
4 the DO output can be directly driven our relay module, which can form a light-operated switch.
1, using photosensitive resistance sensor sensitive type
2, the comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma.
3, with adjustable potentiometer to adjust light brightness
4, the working voltage of 3.3 V to 5 V
5, the output format: digital switch output (0 and 1)
6, has a fixed bolt hole, convenient installation
7, small board PCB size: 3.2 cm x 1.4 cm
8 the LM393, use of wide voltage comparato
